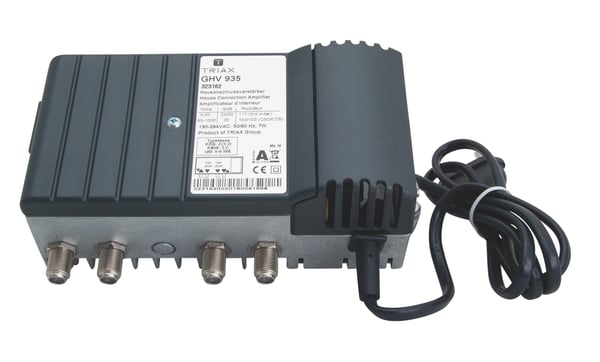

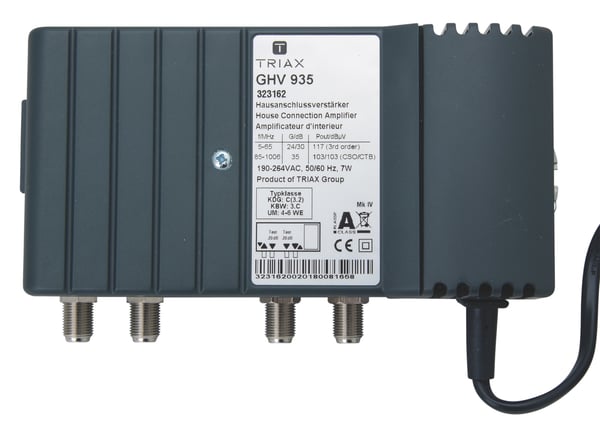

Name: Triax GHV 935 forstærker til TV signal 47 - 1006 MHz
SKU: 5702663231627
Price: 1429 DKK
Availability: OutOfStock

Triax GHV 935. Stik: RF. Strømkilde type: Vekselstrøm, Strømforbrug (typisk): 7 W, Indgangsspænding: 190 - 264 V. Bredde: 170 mm, Dybde: 100 mm, Højde: 65 mm. Pakkebredde: 230 mm, Pakkedybde: 130 mm, Pakkehøjde: 70 mm<br>

weight

Tekniske detaljer

Frekvensområde (returvej)

Forstærkning (fremføringsvej)

Forstærkning (returvej)

Støjtal

The colour e.g. red, blue, green, black, white.

Produktfarve

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

Beskyttelsesklasse

The range of frequencies which can be produced by the device, or can be detected/used by the device to produce an output.

Frekvensområde

Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Understøttet placering

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Compliance-certifikater

Certificering

Porte & Grænseflader

Stik

Strømstyring

Strømkilde type

Amount of power used by this model, expressed in watts maximum

Strømforbrug (typisk)

The voltage (V) which is required to power the product.

Indgangsspænding

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vægt

Emballeringsdata

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Green Friday fejrer 10 år

Triax GHV 935 forstærker til TV signal 47 - 1006 MHz

1.429 kr.

1.429 kr.

Produktbeskrivelse

Triax GHV 935 forstærker til TV signal 47 - 1006 MHz

1.429 kr.

1.429 kr.

Tekniske detaljer
Frekvensområde (returvej)	5 - 65 MHz
Forstærkning (fremføringsvej)	35 dB
Forstærkning (returvej)	30 dB
Støjtal	7 dB
Produktfarve	Sort
Kode for international beskyttelse (IP)	IP20
Beskyttelsesklasse	II
Frekvensområde	47 - 1006 MHz
Understøttet placering	Indendørs
Compliance-certifikater	RoHS
Certificering	EN 50083-3 - Class 2, EN 50083-1, EN 60065, EN 50083, 2RoHS 2002/95/EG

Porte & Grænseflader
Stik	RF

Strømstyring
Strømkilde type	Vekselstrøm
Strømforbrug (typisk)	7 W
Indgangsspænding	190 - 264 V

Driftsbetingelser
Driftstemperatur (T-T)	-25 - 55 °C

Vægt & størrelser
Bredde	170 mm
Dybde	100 mm
Højde	65 mm
Vægt	715 g

Emballeringsdata
Pakkebredde	230 mm
Pakkedybde	130 mm
Pakkehøjde	70 mm
Pakkevægt	806 g
Pakke tara vægt	91 g
