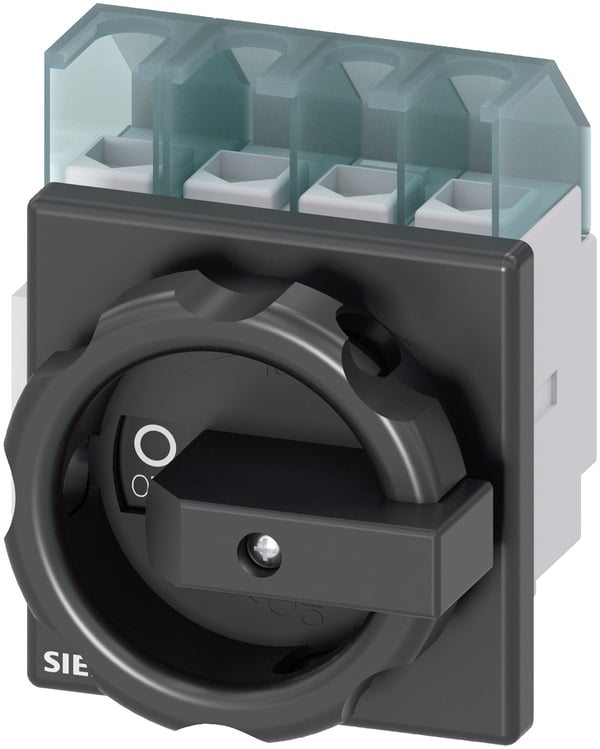

Name: Siemens 3LD2103-1TL51 kredsløbsafbryder 4P
SKU: 4011209402928
Price: 709 DKK
Availability: InStock

Siemens 3LD2103-1TL51. Antal poler: 4P, Kode for international beskyttelse (IP): IP65, Produktfarve: Flerfarvet. Højde: 84 mm, Vægt: 235 g. Pakkebredde: 85 mm, Pakkedybde: 90 mm, Pakkehøjde: 80 mm. Mindste ordremængde: 1 stk<br>

color

weight

Funktioner

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Antal poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

The colour e.g. red, blue, green, black, white.

Produktfarve

Vægt & størrelser

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vægt

Emballeringsdata

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøjde

Pakkevægt

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Compliance-certifikater

The way in which the product is constructed.

Konstruktionstype

The method used to secure the primary electrical conductors to the device, such as via a screw connection or a plug-in connection.

Hovedkredstilslutningstype

The type of mechanism used to operate the device, such as an actuating rod, key, or rotary handle.

Type af betjeningselement

The maximum current that the device can carry continuously under specified conditions without exceeding temperature limits, measured in amperes.

Mærkekontinuerlig strøm (Iu)

Indicates whether the unit includes a built-in motor operator for remote electrical switching.

Integreret motordrev

Indicates whether the unit supports the addition of an external motor drive for remote operation.

Valgfrit motordrev

The maximum power the device can switch under AC-3 load conditions at 400V, measured in kilowatts (e.g. 11 kW).

Mærkedriftseffekt (AC-3, 400 V)

The total number of standard module widths (typically 18 mm) occupied by the device on a DIN rail.

Antal modulafstande

Indicates whether the product is supplied with a battery.

Batteri medfølger

The highest number of units that can be purchased in a single order, measured in pc(s).

Maksimal ordremængde

Logistik data

The smallest number of units that can be purchased in a single order, measured in pc(s).

Siemens 3LD2103-1TL51 kredsløbsafbryder 4P

709 kr.

709 kr.

Produktbeskrivelse

Siemens 3LD2103-1TL51 kredsløbsafbryder 4P

709 kr.

709 kr.

Funktioner
Antal poler	4P
Kode for international beskyttelse (IP)	IP65
Produktfarve	Flerfarvet

Vægt & størrelser
Højde	84 mm
Vægt	235 g

Emballeringsdata
Pakkebredde	85 mm
Pakkedybde	90 mm
Pakkehøjde	80 mm
Pakkevægt	235 g

Tekniske detaljer
Compliance-certifikater	CE
Konstruktionstype	Fixed built-in technique
Hovedkredstilslutningstype	Frame clamp
Type af betjeningselement	Short rotary handle
Mærkekontinuerlig strøm (Iu)	25 A
Integreret motordrev	Ingen
Valgfrit motordrev	Ingen
Mærkedriftseffekt (AC-3, 400 V)	8 kW
Antal modulafstande	4
Batteri medfølger	Ingen
Maksimal ordremængde	1 stk

Logistik data
Mindste ordremængde	1 stk
