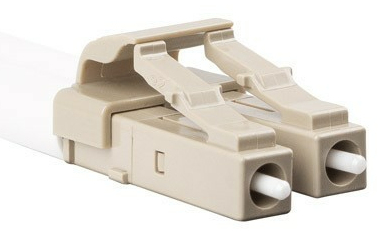

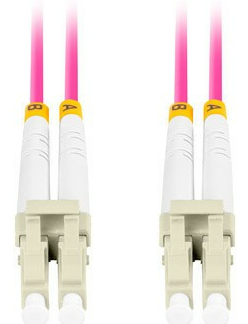

Name: Lanberg FO-LULU-MD41-0005-VT InfiniBand og fiberoptisk kabel 0,5 m LC LC/UPC Violet
SKU: 5901969440102
Price: 114 DKK
Availability: InStock

Lanberg FO-LULU-MD41-0005-VT. Kabellængde: 0,5 m, Kabeltype: LC/UPC, Fiberoptisk type: OM4, Stik 1: LC, Stik 2: LC, Kernediameter: 50 µm, Fuld duplex<br>

color

Funktioner

Kabellængde

The standardised properties of the fiber optic cable.

Fiberoptisk type

The physical cross-sectional profile of the conductor housing, such as flat or round.

Kabelform

This is the first connector in the device.

Stik 1

This is the second connector in the device.

Stik 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Stik 1 køn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Stik 2 køn

The specific geometry and finish of the fiber optic connector end-face to minimize signal loss, such as APC or UPC.

Forbindelsespoleringstype

Kabeltype

Produktfarve

A full-duplex system allows communication in both directions

Fuld duplex

Kernediameter

Beklædning diameter

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fibertilstandsstruktur

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

Indsætningstab

The ratio of power reflected back toward the source to the power delivered into the unit, typically measured in decibels (dB).

Returdæmpning

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Materiale for kapper

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Vægt & størrelser

The distance from one side of the cable to the other

Kabeldiameter

The minimum radius to which the product can be curved without causing structural damage or signal loss, measured in millimetres.

Bøjningsradius

Emballage indhold

The number of individual units contained within a single sales package, measured in pc(s).

Lanberg FO-LULU-MD41-0005-VT InfiniBand og fiberoptisk kabel 0,5 m LC LC/UPC Violet

114 kr.

114 kr.

Produktbeskrivelse

Lanberg FO-LULU-MD41-0005-VT InfiniBand og fiberoptisk kabel 0,5 m LC LC/UPC Violet

114 kr.

114 kr.

Funktioner
Kabellængde	0,5 m
Fiberoptisk type	OM4
Kabelform	Rund
Stik 1	LC
Stik 2	LC
Stik 1 køn	Hanstik
Stik 2 køn	Hanstik
Forbindelsespoleringstype	UPC
Kabeltype	LC/UPC
Produktfarve	Violet
Fuld duplex	Ja
Kernediameter	50 µm
Beklædning diameter	125 µm
Fibertilstandsstruktur	Multitilstand
Indsætningstab	0,2 dB
Returdæmpning	30 dB
Materiale for kapper	Lav røg ingen halogen (LSZH)

Driftsbetingelser
Opbevaringstemperatur (T-T)	-40 - 85 °C

Vægt & størrelser
Kabeldiameter	3 mm
Bøjningsradius	7,5 mm

Emballage indhold
Antal pr. pakke	1 stk
