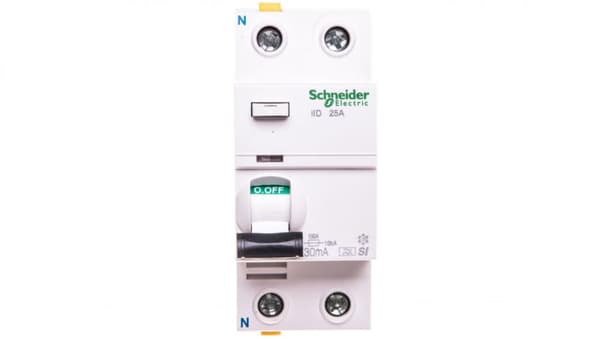

Name: iID 2P 25A 30mA differentialafbryder type A-SI A9Z31225
SKU: elhurt_3606480442599
Price: 912 DKK
Availability: InStock

KN: 85363030 Frekvens [Hz]: 50 Længde: 100 EAN: 3606480442599 Producentens indeks: A9Z31225 Antal Poler: 2 PKWiU: 27.12.23.0 Mærkestrøm [A]: 25 serie: Acti9 Bredde: 85 Bredde udtrykt i antal moduler: 4 Vægt: 0,2400 Højde: 40

color

weight

Strømstyring

The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).

Indgangsstrøm

The frequency (Hz) which is required to power the product.

Indgangsfrekvens

The threshold current at which the device detects a leakage to earth and triggers a disconnection, measured in mA.

Følsomhed for jordlækage

Funktioner

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Antal poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

The colour e.g. red, blue, green, black, white.

Produktfarve

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vægt

Emballeringsdata

The number of individual units contained within a single sales package, measured in pc(s).

Strømstyring
Indgangsstrøm	25 A
Indgangsfrekvens	50/60 Hz
Følsomhed for jordlækage	30 mA

Funktioner
Antal poler	2P
Kode for international beskyttelse (IP)	IP20
Produktfarve	Hvid

Driftsbetingelser
Driftstemperatur (T-T)	-25 - 60 °C
Opbevaringstemperatur (T-T)	-40 - 85 °C

Vægt & størrelser
Bredde	36 mm
Dybde	73 mm
Højde	91 mm
Vægt	210 g

Emballeringsdata
Antal pr. pakke	1 stk
Pakkebredde	100 mm
Pakkedybde	80 mm
Pakkehøjde	40 mm
Pakkevægt	242 g
