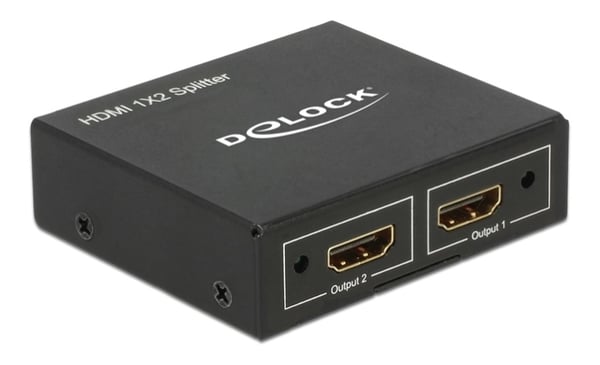

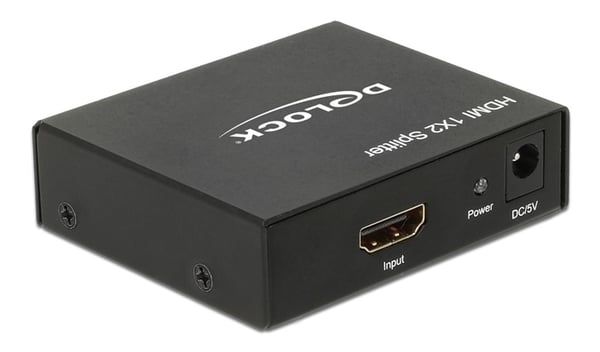

DeLOCK HDMI Splitter, 1xHDMI in - 2xHDMI out, 3840x2160 at 30Hz, HDCP 1.3, metal housing, black

This splitter by Delock receives a HDMI signal from a PC or laptop and splits it to two connected displays. Thereby one HDMI connection can be used to operate two HDMI monitors.

Specification
• Connector:
  Input:
    1 x HDMI-A 19 pin female
    1 x 5 V DC jack 2.1 x 5.5 mm
  Output:
    2 x HDMI-A 19 pin female
• High Speed HDMI specification
• Supports 3D displays
• Supports HDCP 1.3
• LED indicator
• Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected
  hardware)
• Video bandwidth up to 340 MHz
• Power consumption: max. 2.0 W
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 63 x 54 x 18 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 9 mm

System requirements
• A free HDMI female port
• HDMI cable

Package content
• HDMI Splitter
• USB power cable
• External power supply
• User manual
