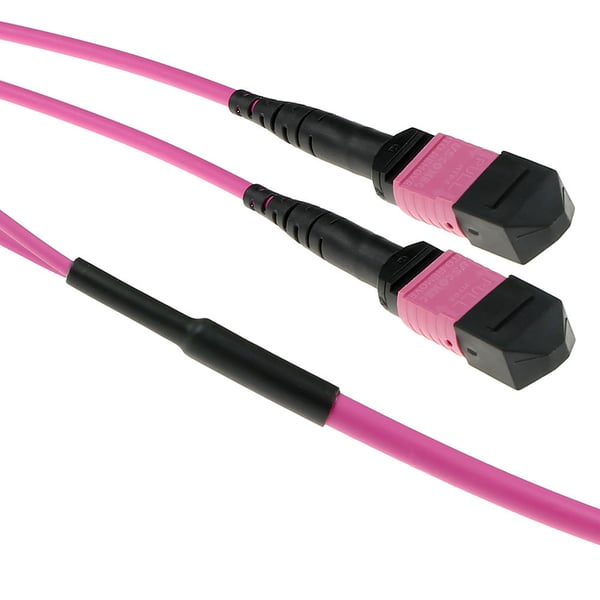

Name: ACT DC5261 InfiniBand og fiberoptisk kabel 50 m 2x MPO Violet
SKU: 8716065433425
Price: 5506 DKK
Availability: OutOfStock

ACT DC5261. Kabellængde: 50 m, Fiberoptisk type: OM4, Stik 1: 2x MPO, Stik 2: 2x MPO, Kernediameter: 50 µm<br>

color

weight

Funktioner

Kabellængde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Stik 1

This is the second connector in the device.

Stik 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Stik 1 køn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Stik 2 køn

Produktfarve

A full-duplex system allows communication in both directions

Fuld duplex

Kernediameter

Beklædning diameter

Fibertilstandsstruktur

Indsætningstab

Returdæmpning

Materiale for kapper

Polaritet

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Vægt & størrelser

The distance from one side of the cable to the other

Kabeldiameter

Weight of the product without packaging (net weight). If possible

Green Friday fejrer 10 år

ACT DC5261 InfiniBand og fiberoptisk kabel 50 m 2x MPO Violet

5.506 kr.

5.506 kr.

Produktbeskrivelse

ACT DC5261 InfiniBand og fiberoptisk kabel 50 m 2x MPO Violet

5.506 kr.

5.506 kr.

Funktioner
Kabellængde	50 m
Fiberoptisk type	OM4
Stik 1	2x MPO
Stik 2	2x MPO
Stik 1 køn	Hunstik
Stik 2 køn	Hunstik
Produktfarve	Violet
Fuld duplex	Ingen
Kernediameter	50 µm
Beklædning diameter	125 µm
Fibertilstandsstruktur	Multitilstand
Indsætningstab	0,2 dB
Returdæmpning	20 dB
Materiale for kapper	Lav røg ingen halogen (LSZH)
Polaritet	B

Driftsbetingelser
Driftstemperatur (T-T)	-20 - 70 °C
Opbevaringstemperatur (T-T)	-40 - 80 °C

Vægt & størrelser
Kabeldiameter	6,8 mm
Vægt	1,77 kg

Emballage indhold
Antal pr. pakke	1 stk

Logistik data
Harmoniseret systemkode (HS)	85447000
