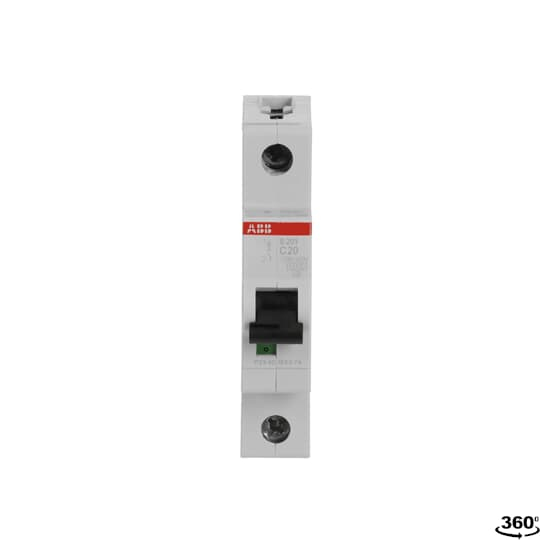

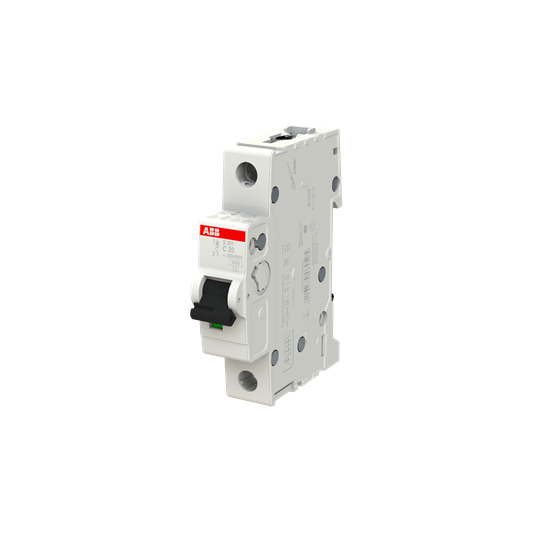

Name: ABB S201-C20 kredsløbsafbryder Miniature strømafbryder Type C 1
SKU: 4016779464505
Price: 125 DKK
Availability: OutOfStock

ABB S201-C20. Nominel strøm: 20 A, Indgangsfrekvens: 50 / 60 Hz, Totalt strømtab: 2,5 W. Strømbryder type: Miniature strømafbryder, Type: Type C, Kode for international beskyttelse (IP): IP20, IP40. Bredde: 17,5 mm, Dybde: 69 mm, Højde: 88 mm. Pakkebredde: 92 mm, Pakkedybde: 183 mm, Pakkehøjde: 80 mm<br>

color

weight

Strømstyring

The frequency (Hz) which is required to power the product.

Indgangsfrekvens

Nominel strøm

Totalt strømtab

Funktioner

Strømbryder type

Type

Antal poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

Forureningsgrad

The way in which the product is being installed.

Installationstype

The colour e.g. red, blue, green, black, white.

Produktfarve

Certificering

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Green Friday fejrer 10 år

ABB S201-C20 kredsløbsafbryder Miniature strømafbryder Type C 1

125 kr.

125 kr.

Produktbeskrivelse

ABB S201-C20 kredsløbsafbryder Miniature strømafbryder Type C 1

125 kr.

125 kr.

Strømstyring
Indgangsfrekvens	50 / 60 Hz
Nominel strøm	20 A
Totalt strømtab	2,5 W

Funktioner
Strømbryder type	Miniature strømafbryder
Type	Type C
Antal poler	1
Kode for international beskyttelse (IP)	IP20, IP40
Forureningsgrad	3
Installationstype	DIN-skinne
Produktfarve	Grå
Certificering	IEC/EN 60898-1 IEC/EN 60947-2 UL 1077

Driftsbetingelser
Driftstemperatur (T-T)	-25 - 55 °C
Opbevaringstemperatur (T-T)	-40 - 70 °C

Vægt & størrelser
Bredde	17,5 mm
Dybde	69 mm
Højde	88 mm
Vægt	125 g

Emballeringsdata
Pakkebredde	92 mm
Pakkedybde	183 mm
Pakkehøjde	80 mm
Pakkevægt	1,29 kg
