TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
465 kr.
465 kr.
Tors., 24 sept. - man., 28 sept.
Sikker betaling
14 dages åbent køb
Sælges og leveres af
Produktbeskrivelse

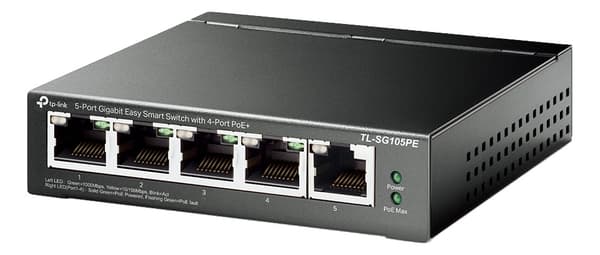

TL-SG105PE 5-Port Gigabit Easy Smart Switchwith 4-Port PoE+, black
The TL-SG105PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
• Five 10/100/1000Mbps RJ45 ports
• Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
• Supports PoE power up to 65 W for all PoE ports
• Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration
• Fanless design lowers energy consumption and eliminates operating noise
Dimensions(WxDxH): 99.8×98×25mm
Farve
Sort
Varenr.
9bbaf38e-1927-499e-a03a-b9d2f147fc21
Administrationsfunktioner | |
|---|---|
Switch-type | Administreret |
Switch lag | L2 |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 5 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 5 |
Netværk | |
Netværksstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T |
Understøttede kabeltyper | Cat3, Cat4, Cat5, Cat5e, Cat6 |
Port-spejlning | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Broadcast stormkontrol | Ja |
Begrænsning af hastighed | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Port-based VLAN, Tagged VLAN |
Antal VLAN'er | 4000 |
Dataoverførsel | |
Switch kapacitet | 10 Gbit/sek. |
Hastighed for videresendelse | 7,44 Mpps |
MAC adresselabel | 2000 entries |
Opbevar-og-frem | Ja |
Antal køer | 4 |
Jumbo Frames support | Ja |
Jumbo rammer | 16000 |
Pakke bufferlager | 1 MB |
Sikkerhed | |
IGMP snooping | Ja |
Loop beskyttelse | Ja |
Design | |
Stativ-montering | Ingen |
Produktfarve | Sort |
LED-indikatorer | Aktivitet, Link, PoE, Strøm, Hastighed, Status |
Præstation | |
Ventilatorfri | Ja |
Strømstyring | |
Strømkilde | DC |
Strømforsyning inkluderet | Ja |

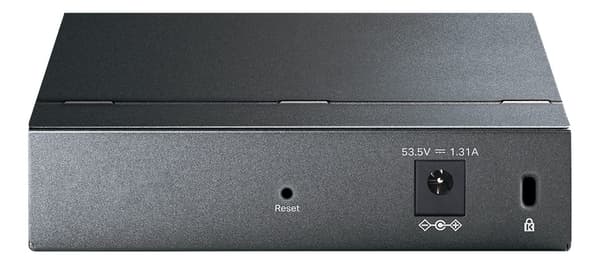

Indgangsstrøm | 1.31 A |
Indgangsspænding | 53.5 V |
Strømforbrug (maks.) | 75,16 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 4 |
Power over Ethernet (PoE) effekt pr. port | 30 W |
Total Power over Ethernet (PoE) | 65 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
Varmeafgivelse | 256,3 BUT/t |
Vægt & størrelser | |
Bredde | 99,8 mm |
Dybde | 98 mm |
Højde | 25 mm |
Emballage indhold | |
Brugervejledning | Ja |
Emballeringsdata | |
Pakkebredde | 131 mm |
Pakkedybde | 196 mm |
Pakkehøjde | 121 mm |
Pakkevægt | 770 g |
Godkendelser | |
Certificering | FCC, CE, RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
