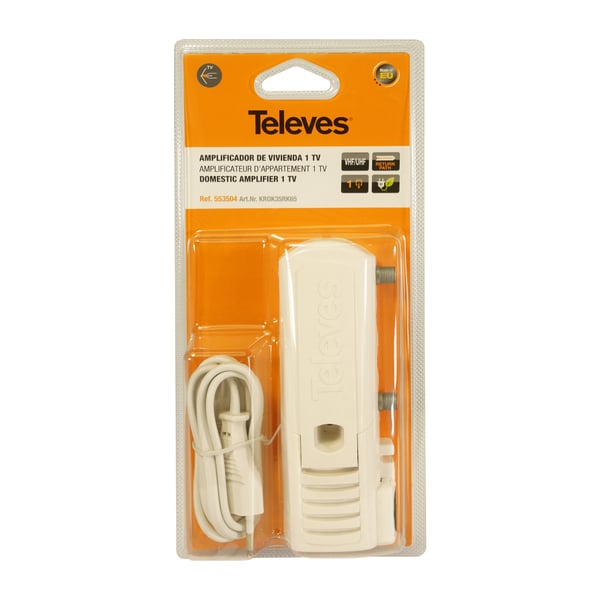

Name: Televes 553504 forstærker til TV signal 88 - 1006 MHz
SKU: 8424450224328
Price: 866 DKK
Availability: InStock

Televes 553504. Stik: F. Strømkilde type: Vekselstrøm, Strømforbrug (typisk): 2,4 W, Indgangsspænding: 220 - 230 V. Bredde: 53 mm, Dybde: 35 mm, Højde: 146 mm. Pakkebredde: 258 mm, Pakkedybde: 122 mm, Pakkehøjde: 46 mm<br>

weight

Tekniske detaljer

Frekvensområde (returvej)

Forstærkning (fremføringsvej)

Forstærkning (returvej)

Støjtal

The colour e.g. red, blue, green, black, white.

Produktfarve

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

The range of frequencies which can be produced by the device, or can be detected/used by the device to produce an output.

Frekvensområde

Porte & Grænseflader

The number of ports or external interfaces to which other equipment can be connected.

Porte, antal

Stik

Strømstyring

Strømkilde type

Amount of power used by this model, expressed in watts maximum

Strømforbrug (typisk)

The voltage (V) which is required to power the product.

Indgangsspænding

The frequency (Hz) which is required to power the product.

Indgangsfrekvens

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vægt

Emballage indhold

Antal

Emballeringsdata

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Televes 553504 forstærker til TV signal 88 - 1006 MHz

866 kr.

866 kr.

Produktbeskrivelse

Televes 553504 forstærker til TV signal 88 - 1006 MHz

866 kr.

866 kr.

Tekniske detaljer
Frekvensområde (returvej)	5 - 65 MHz
Forstærkning (fremføringsvej)	35 dB
Forstærkning (returvej)	-1 dB
Støjtal	5 dB
Produktfarve	Hvid
Kode for international beskyttelse (IP)	IP20
Frekvensområde	88 - 1006 MHz

Porte & Grænseflader
Porte, antal	2
Stik	F

Strømstyring
Strømkilde type	Vekselstrøm
Strømforbrug (typisk)	2,4 W
Indgangsspænding	220 - 230 V
Indgangsfrekvens	50 - 60 Hz

Driftsbetingelser
Driftstemperatur (T-T)	-5 - 45 °C

Vægt & størrelser
Bredde	53 mm
Dybde	35 mm
Højde	146 mm
Vægt	220 g

Emballage indhold
Antal	1

Emballeringsdata
Pakkebredde	258 mm
Pakkedybde	122 mm
Pakkehøjde	46 mm
Pakkevægt	320 g
