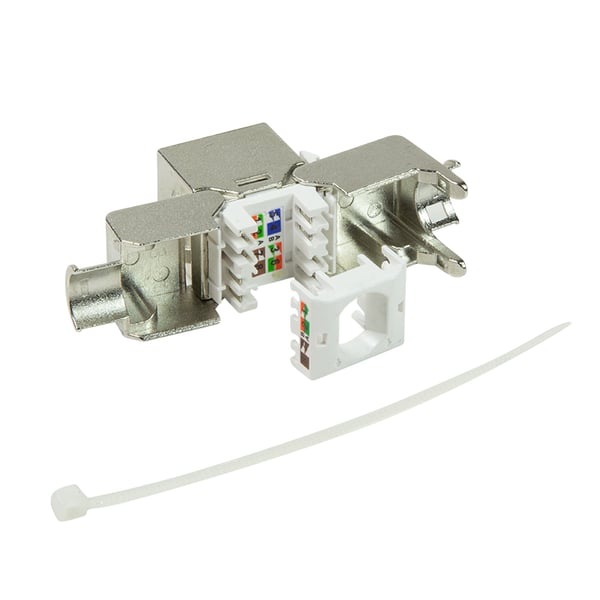

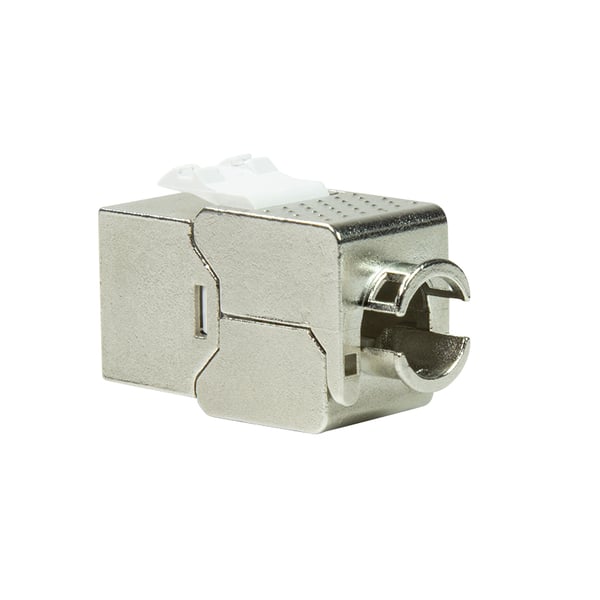

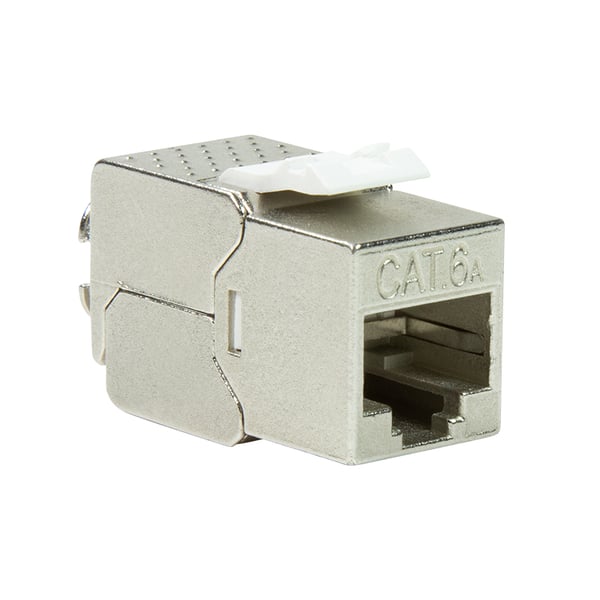

Name: LogiLink NK4019 kilesten modul
SKU: 4052792060256
Price: 95 DKK
Availability: InStock

LogiLink NK4019. Konstruktionstype: Flad, Produktfarve: Sølv, Stik 1: RJ-45. Bredde: 14,8 mm, Dybde: 34,5 mm, Højde: 19,1 mm. Pakkebredde: 120 mm, Pakkedybde: 79 mm. Antal pr. pakke: 1 stk<br>

color

fryer_construction

weight

Funktioner

The way in which the product is constructed.

Konstruktionstype

Produktfarve

This is the first connector in the device.

Stik 1

This is the second connector in the device.

Stik 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Stik 1 køn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Stik 2 køn

What the connector contacts are covered with (layer on top).

Stikforbindelse kontakter plettering

AWG-ledningsstørrelse

Understøttede kabeltyper

Stik retentionskraft

What the casing of the product is made of.

Husmateriale

Frekvens

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible

Vægt

Emballeringsdata

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

LogiLink NK4019 kilesten modul

95 kr.

95 kr.

Produktbeskrivelse

LogiLink NK4019 kilesten modul

95 kr.

95 kr.

Funktioner
Konstruktionstype	Flad
Produktfarve	Sølv
Stik 1	RJ-45
Stik 2	RJ-45
Stik 1 køn	Hunstik
Stik 2 køn	Hunstik
Stikforbindelse kontakter plettering	Tin
AWG-ledningsstørrelse	22/26
Understøttede kabeltyper	Cat6a
Stik retentionskraft	30 N
Husmateriale	Zink
Frekvens	500 MHz

Driftsbetingelser
Driftstemperatur (T-T)	-40 - 70 °C
Opbevaringstemperatur (T-T)	-10 - 60 °C

Vægt & størrelser
Bredde	14,8 mm
Dybde	34,5 mm
Højde	19,1 mm
Vægt	20 g

Emballeringsdata
Pakkebredde	120 mm
Pakkedybde	79 mm

Emballage indhold
Antal pr. pakke	1 stk

Logistik data
Harmoniseret systemkode (HS)	85369010
