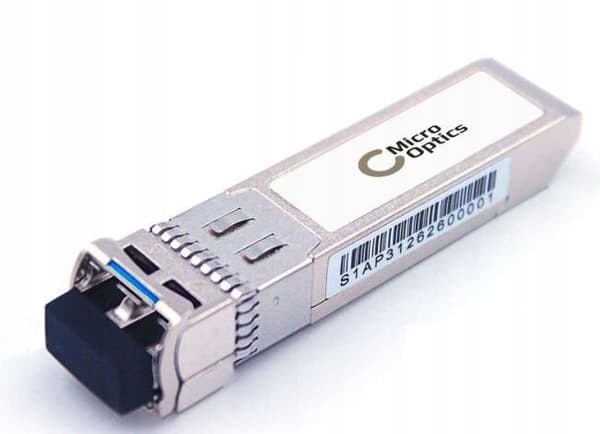

Name: Lanview SFP 1,25 Gb/s LC SM-transceiver
SKU: eet_5711045423154
Price: 280 DKK
Availability: InStock

MicroOptics SFP 1310nm, SMF, 20km, LC 1310nm, 20km, DDMI **100% Cisco-kompatibel**<br>

weight

Præstation

SFP modtagertype

The maximum speed with which data can be transmitted from one device to another.

Maksimal dataoverførselshastighed

Grænsefladetype

Enkelttilstand fiber (SMF) understøttet

Multitilstand fiber (MMF) understøttet

This terminates the end of an optical fiber

Fiber optisk strømstik

SFP transceiver standard

The greatest distance over which the data/signal can be transferred.

Maksimal overførselsafstand

The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.

Bølgelængde

Type of cable technology performance, including the fiber or cable type

Kabelteknologi

A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions

Duplex system

Digital diagnose overvågning (DDM)

The number of sockets (ports) for fibers (cables).

Fiberkanal porte

Funktioner

Indicates whether this product supports is "plug and play". Plug and play is  hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Plug and play

Nem at installere

What other brands this brand can be used with.

Mærke kompatibilitet

Other products that can be used with this product.

Kompatible produkter

Godkendelser

Certificering

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Relativ luftfugtighed ved opbevaring (H-H)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible

Vægt

Emballeringsdata

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Lanview SFP 1,25 Gb/s LC SM-transceiver

280 kr.

280 kr.

Produktbeskrivelse

Lanview SFP 1,25 Gb/s LC SM-transceiver

280 kr.

280 kr.

Præstation
SFP modtagertype	Fiberoptisk
Maksimal dataoverførselshastighed	1000 Mbit/s
Grænsefladetype	SFP
Enkelttilstand fiber (SMF) understøttet	Ja
Multitilstand fiber (MMF) understøttet	Ingen
Fiber optisk strømstik	LC
SFP transceiver standard	LX
Maksimal overførselsafstand	20000 m
Bølgelængde	1310 nm
Kabelteknologi	10/100/1000
Duplex system	Fuld
Digital diagnose overvågning (DDM)	Ja
Fiberkanal porte	1

Funktioner
Plug and play	Ja
Nem at installere	Ja
Mærke kompatibilitet	Cisco
Kompatible produkter	Cisco GLC-LH-SMD=

Godkendelser
Certificering	MSA

Driftsbetingelser
Driftstemperatur (T-T)	-45 - 75 °C
Opbevaringstemperatur (T-T)	-40 - 85 °C
Relativ luftfugtighed ved opbevaring (H-H)	10 - 85%

Vægt & størrelser
Bredde	12 mm
Dybde	57 mm
Højde	11 mm
Vægt	10 g

Emballeringsdata
Pakkebredde	107 mm
Pakkedybde	65 mm
Pakkehøjde	24 mm
Pakkevægt	36 g
Pakketype	Vinduesboks
