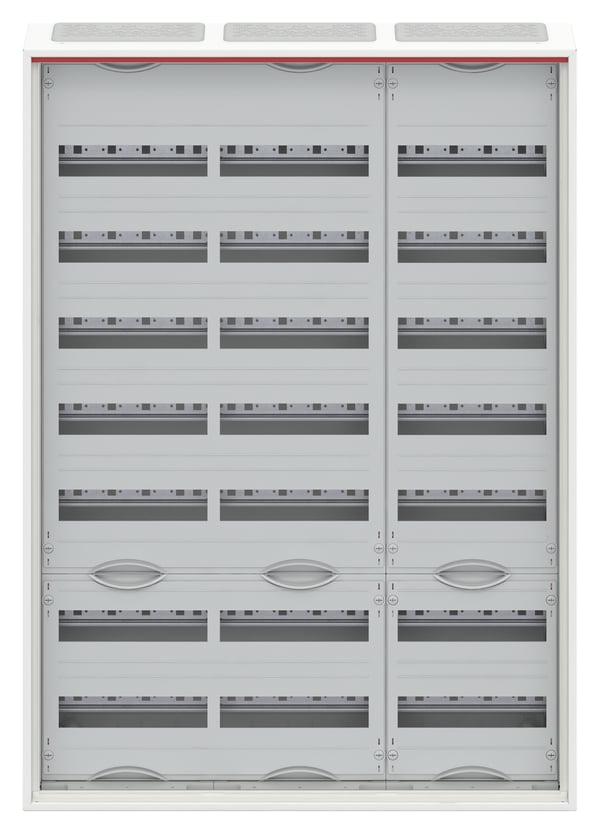

Name: ABB STRIEBEL & JOHN CA37V elektrisk skab Plast, Stål IP30
SKU: 4011617521938
Price: 9604 DKK
Availability: InStock

ABB STRIEBEL & JOHN CA37V. Bredde: 800 mm, Dybde: 160 mm, Højde: 1100 mm. Antal pr. pakke: 1 stk<br>

weight

Tekniske detaljer

Kan låses

Antal døre

Døråbningsvinkel

The colour e.g. red, blue, green, black, white.

Produktfarve

What the casing of the product is made of.

Husmateriale

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

Husbelægning

IK kode

Door hinge location or type, wich is movable joint or mechanism on which a door, gate, or lid swings as it opens and closes or which connects linked objects.

Dørhængsel

Modulært

Formål

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

ABB STRIEBEL & JOHN CA37V elektrisk skab Plast, Stål IP30

9.604 kr.

9.604 kr.

Produktbeskrivelse

ABB STRIEBEL & JOHN CA37V elektrisk skab Plast, Stål IP30

9.604 kr.

9.604 kr.

Tekniske detaljer
Kan låses	Ja
Antal døre	2 dør(e)
Døråbningsvinkel	120°
Produktfarve	Hvid
Husmateriale	Plast, Stål
Kode for international beskyttelse (IP)	IP30
Husbelægning	Pulverbelægning
IK kode	IK07
Dørhængsel	Venstre/højre
Modulært	Ja
Formål	Elektrisk terminal

Vægt & størrelser
Bredde	800 mm
Dybde	160 mm
Højde	1100 mm
Vægt	29,8 kg
Pakkevægt	31 kg
Pakkedybde	165 mm
Pakkebredde	806 mm
Pakkehøjde	1102 mm

Logistik data
Antal pr. pakke	1 stk
