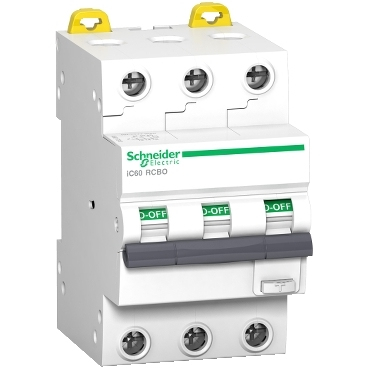

Name: Schneider Electric iC60 RCBO kredsløbsafbryder 3P
SKU: 3606481157942
Price: 2524 DKK
Availability: InStock

Schneider Electric iC60 RCBO. Indgangsstrøm: 16 A, Indgangsfrekvens: 50 Hz, Følsomhed for jordlækage: 30 mA. Smeltekurvetype: Type C, Kapacitet ved nedbrud: 10000 A, Antal poler: 3P. Bredde: 54 mm, Dybde: 78 mm, Højde: 86 mm. Antal pr. pakke: 1 stk, Pakkebredde: 98 mm, Pakkedybde: 57 mm<br>

color

weight

Strømstyring

Indgangsstrøm

The frequency (Hz) which is required to power the product.

Indgangsfrekvens

Følsomhed for jordlækage

Funktioner

Smeltekurvetype

Kapacitet ved nedbrud

Antal poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

Energibegrænsende klasse

The colour e.g. red, blue, green, black, white.

Produktfarve

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Relativ luftfugtighed ved drift (H-H)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Schneider Electric iC60 RCBO kredsløbsafbryder 3P

2.524 kr.

2.524 kr.

Produktbeskrivelse

Schneider Electric iC60 RCBO kredsløbsafbryder 3P

2.524 kr.

2.524 kr.

Strømstyring
Indgangsstrøm	16 A
Indgangsfrekvens	50 Hz
Følsomhed for jordlækage	30 mA

Funktioner
Smeltekurvetype	Type C
Kapacitet ved nedbrud	10000 A
Antal poler	3P
Kode for international beskyttelse (IP)	IP20
Energibegrænsende klasse	1
Produktfarve	Hvid

Driftsbetingelser
Driftstemperatur (T-T)	-25 - 40 °C
Opbevaringstemperatur (T-T)	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H)	0 - 95%

Vægt & størrelser
Bredde	54 mm
Dybde	78 mm
Højde	86 mm
Vægt	334 g

Emballeringsdata
Antal pr. pakke	1 stk
Pakkebredde	98 mm
Pakkedybde	57 mm
Pakkehøjde	80 mm
Pakkevægt	334 g
