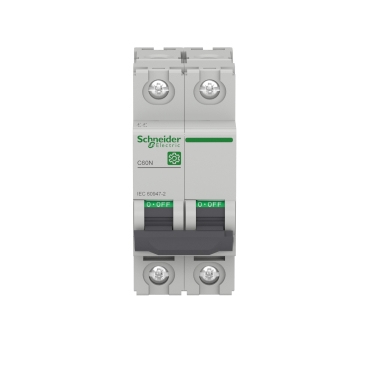

Name: Schneider Electric C60N kredsløbsafbryder 2P
SKU: 3606480576287
Price: 1019 DKK
Availability: InStock

Schneider Electric C60N. Indgangsstrøm: 32 A, Indgangsfrekvens: 50/60 Hz, Nominel spænding: 240 V. Smeltekurvetype: Type C, Antal poler: 2P, Kode for international beskyttelse (IP): IP20. Bredde: 36 mm, Dybde: 72 mm, Højde: 81 mm. Antal pr. pakke: 1 stk, Pakkebredde: 85 mm, Pakkedybde: 75 mm<br>

color

weight

Strømstyring

Indgangsstrøm

The frequency (Hz) which is required to power the product.

Indgangsfrekvens

Nominel spænding

Funktioner

Smeltekurvetype

Antal poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

Energibegrænsende klasse

The colour e.g. red, blue, green, black, white.

Produktfarve

Certificering

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Relativ luftfugtighed ved drift (H-H)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Schneider Electric C60N kredsløbsafbryder 2P

1.019 kr.

1.019 kr.

Produktbeskrivelse

Schneider Electric C60N kredsløbsafbryder 2P

1.019 kr.

1.019 kr.

Strømstyring
Indgangsstrøm	32 A
Indgangsfrekvens	50/60 Hz
Nominel spænding	240 V

Funktioner
Smeltekurvetype	Type C
Antal poler	2P
Kode for international beskyttelse (IP)	IP20
Energibegrænsende klasse	3
Produktfarve	Grå
Certificering	EACKCCCC

Driftsbetingelser
Driftstemperatur (T-T)	-30 - 70 °C
Opbevaringstemperatur (T-T)	-40 - 80 °C
Relativ luftfugtighed ved drift (H-H)	0 - 95%

Vægt & størrelser
Bredde	36 mm
Dybde	72 mm
Højde	81 mm
Vægt	240 g

Emballeringsdata
Antal pr. pakke	1 stk
Pakkebredde	85 mm
Pakkedybde	75 mm
Pakkehøjde	36 mm
Pakkevægt	236 g
