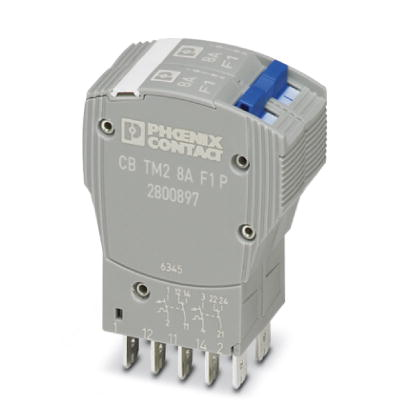

Name: Phoenix Contact 2800897 kredsløbsafbryder Type S
SKU: 4046356690584
Price: 907 DKK
Availability: InStock

Phoenix Contact 2800897. Nominel strøm: 8 A, Nominel spænding: 80 V, Effekttab: 1,28 W. Type: Type S, Kode for international beskyttelse (IP): IP30, Type af frigivelse: TM2. Bredde: 24,6 mm, Dybde: 52 mm, Højde: 45 mm<br>

color

weight

Strømstyring

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Nominel strøm

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Nominel spænding

The amount of electrical power lost as heat during operation, typically measured in watts (W).

Effekttab

The maximum electric field that the insulating material can withstand before electrical breakdown occurs, typically measured in volts per unit of thickness.

Dielektrisk styrke

The amount of electrical potential lost as current flows through the device, typically measured in volts (V) or millivolts (mV).

Spændingsfald

Funktioner

Type

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

The mechanism used to trigger the disconnection of the electrical circuit, such as electronic (EL) or thermal-magnetic (TM) release.

Type af frigivelse

The fire safety rating of the materials used, indicating the degree of resistance to ignition and the rate of flame spread (e.g., B1).

Brandbar klasse

The total number of available slots, contact points, or adjustment settings provided on the unit.

Antal positioner

The level of contamination of the environment in which the device is used, categorized by the risk of electrical breakdown due to pollution (e.g. 2 or 3).

Forureningsgrad

The colour e.g. red, blue, green, black, white.

Produktfarve

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Certificering

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.

Relativ luftfugtighed ved drift (H-H)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vægt

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Phoenix Contact 2800897 kredsløbsafbryder Type S

907 kr.

907 kr.

Produktbeskrivelse

Phoenix Contact 2800897 kredsløbsafbryder Type S

907 kr.

907 kr.

Strømstyring
Nominel strøm	8 A
Nominel spænding	80 V
Effekttab	1,28 W
Dielektrisk styrke	3000 V
Spændingsfald	140 mV

Funktioner
Type	Type S
Kode for international beskyttelse (IP)	IP30
Type af frigivelse	TM2
Brandbar klasse	V-0
Antal positioner	2
Forureningsgrad	2
Produktfarve	Grå
Certificering	EN 60934, UL 1077 UL/C-UL, UL 508 UL/C - UL, CSA 22.2 No. 235-04

Driftsbetingelser
Driftstemperatur (T-T)	-30 - 60 °C
Opbevaringstemperatur (T-T)	-40 - 80 °C
Relativ luftfugtighed ved drift (H-H)	0 - 95%

Vægt & størrelser
Bredde	24,6 mm
Dybde	52 mm
Højde	45 mm
Vægt	80 g

Tekniske detaljer
Compliance-certifikater	RoHS
