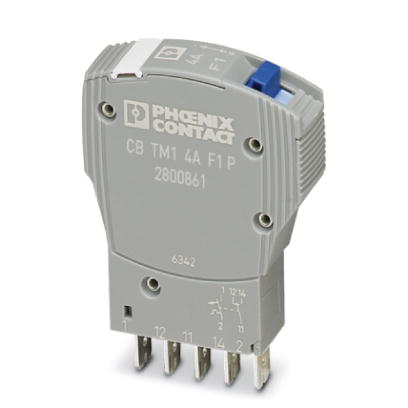

Name: Phoenix Contact 2800861 kredsløbsafbryder Type S
SKU: 4046356690218
Price: 585 DKK
Availability: InStock

Phoenix Contact 2800861. Nominel strøm: 4 A, Nominel spænding: 277 V, Effekttab: 1,44 W. Type: Type S, Kapacitet ved nedbrud: 1000 A, Kode for international beskyttelse (IP): IP30. Bredde: 12,3 mm, Dybde: 52 mm, Højde: 45 mm<br>

color

weight

Strømstyring

Nominel strøm

Nominel spænding

Effekttab

Dielektrisk styrke

Spændingsfald

Funktioner

Type

Kapacitet ved nedbrud

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

Type af frigivelse

Brandbar klasse

Antal positioner

Forureningsgrad

The colour e.g. red, blue, green, black, white.

Produktfarve

Certificering

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Relativ luftfugtighed ved drift (H-H)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vægt

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Phoenix Contact 2800861 kredsløbsafbryder Type S

585 kr.

585 kr.

Produktbeskrivelse

Phoenix Contact 2800861 kredsløbsafbryder Type S

585 kr.

585 kr.

Strømstyring
Nominel strøm	4 A
Nominel spænding	277 V
Effekttab	1,44 W
Dielektrisk styrke	3000 V
Spændingsfald	340 mV

Funktioner
Type	Type S
Kapacitet ved nedbrud	1000 A
Kode for international beskyttelse (IP)	IP30
Type af frigivelse	TM1
Brandbar klasse	V-0
Antal positioner	1
Forureningsgrad	2
Produktfarve	Grå
Certificering	EN 60934, UL 1077 UL/C-UL, UL 508 UL/C, CSA 22.2 No. 235-04

Driftsbetingelser
Driftstemperatur (T-T)	-30 - 60 °C
Opbevaringstemperatur (T-T)	-40 - 80 °C
Relativ luftfugtighed ved drift (H-H)	0 - 95%

Vægt & størrelser
Bredde	12,3 mm
Dybde	52 mm
Højde	45 mm
Vægt	45,6 g

Tekniske detaljer
Compliance-certifikater	RoHS

Phoenix Contact 2800861 kredsløbsafbryder Type S

585 kr.

585 kr.

Produktbeskrivelse

Specifikationer

Phoenix Contact 2800861 kredsløbsafbryder Type S

585 kr.

585 kr.
