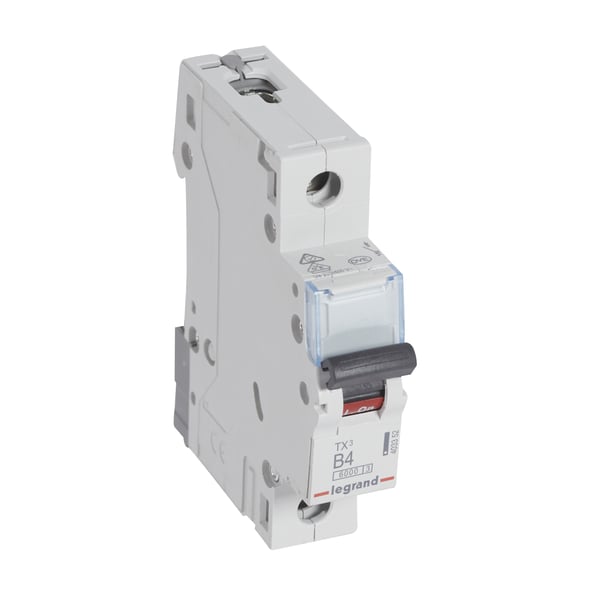

Name: Legrand adapterafbryder 1P B 4A 6kA AC S301 TX3 (403352)
SKU: CDON-6ac87e854a55d9765630185f8a6f42
Price: 259 DKK
Availability: InStock

Legrand adapterafbryder 1P B 4A 6kA AC S301 TX3 (403352)<br>

Strømstyring

The voltage (V) which is required to power the product.

Indgangsspænding

The frequency (Hz) which is required to power the product.

Indgangsfrekvens

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Nominel strøm

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Nominel spænding

The maximum electric field that the insulating material can withstand before electrical breakdown occurs, typically measured in volts per unit of thickness.

Dielektrisk styrke

Funktioner

The specific design and functional category of the protection device, such as a Miniature circuit breaker or a Residual-current device.

Strømbryder type

Type

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Antal poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

The level of contamination of the environment in which the device is used, categorized by the risk of electrical breakdown due to pollution (e.g. 2 or 3).

Forureningsgrad

The classification of the device's ability to limit the let-through energy during a short-circuit fault, typically categorized by levels such as 1, 2, or 3.

Energibegrænsende klasse

The way in which the product is being installed.

Installationstype

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Tekniske detaljer

Specifies the harmful or restricted substances that are not present in the product (e.g. Acetone, Alcohol, or Aluminium).

Legrand adapterafbryder 1P B 4A 6kA AC S301 TX3 (403352)

259 kr.

259 kr.

Produktbeskrivelse

Legrand adapterafbryder 1P B 4A 6kA AC S301 TX3 (403352)

259 kr.

259 kr.

Strømstyring
Indgangsspænding	240 - 415 V
Indgangsfrekvens	50 - 60 Hz
Nominel strøm	4 A
Nominel spænding	230 V
Dielektrisk styrke	4000 V

Funktioner
Strømbryder type	Miniature strømafbryder
Type	Type B
Antal poler	1
Kode for international beskyttelse (IP)	IP20
Forureningsgrad	2
Energibegrænsende klasse	3
Installationstype	DIN-skinne

Driftsbetingelser
Opbevaringstemperatur (T-T)	-40 - 70 °C

Vægt & størrelser
Bredde	17,8 mm
Dybde	77,8 mm
Højde	88 mm

Tekniske detaljer
Indeholder ikke	Halogen
