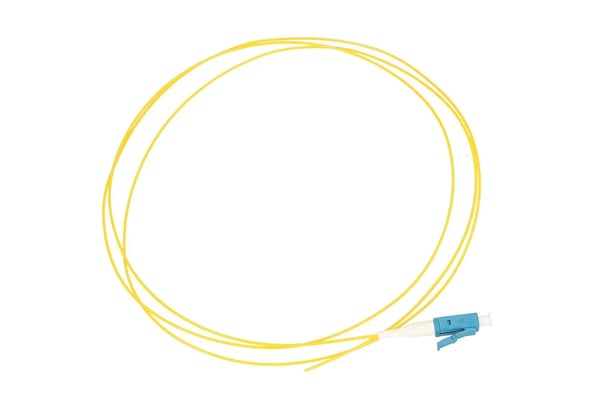

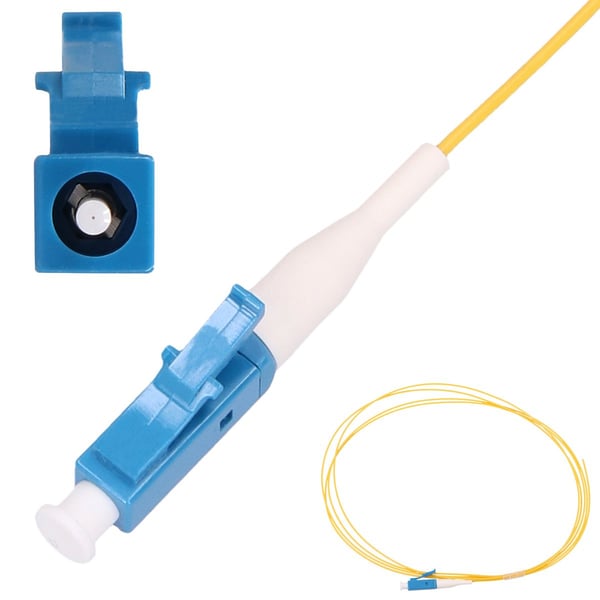

Name: Extralink EX.10154 InfiniBand og fiberoptisk kabel 1 m LC FTTH Gul
SKU: 5903148910154
Price: 124 DKK
Availability: InStock

Extralink EX.10154. Kabellængde: 1 m, Kabeltype: FTTH, Fiberoptisk type: G.652D, Stik 1: LC<br>

color

weight

Funktioner

Kabellængde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Stik 1

This is the second connector in the device.

Stik 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Stik 1 køn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Stik 2 køn

The specific geometry and finish of the fiber optic connector end-face to minimize signal loss, such as APC or UPC.

Forbindelsespoleringstype

Kabeltype

Produktfarve

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fibertilstandsstruktur

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

Indsætningstab

The ratio of power reflected back toward the source to the power delivered into the unit, typically measured in decibels (dB).

Returdæmpning

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Materiale for kapper

Indicates whether this product supports is "plug and play". Plug and play is  hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Plug and play

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vægt & størrelser

The distance from one side of the cable to the other

Kabeldiameter

Weight of the product without packaging (net weight). If possible

Vægt

Emballeringsdata

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøjde

Pakkevægt

Pakketype

Emballage indhold

The number of individual units contained within a single sales package, measured in pc(s).

Antal pr. pakke

Indicates whether a factory test report or certification protocol is provided with the product to verify its performance specifications.

Testprotokol inkluderet

Logistik data

The integrated Tariff of the European Union code used to identify the product for customs and trade purposes.

Toldproduktkode (TARIC)

Country where the device is made. Aka Country of manufacture (COM).

Extralink EX.10154 InfiniBand og fiberoptisk kabel 1 m LC FTTH Gul

124 kr.

124 kr.

Produktbeskrivelse

Extralink EX.10154 InfiniBand og fiberoptisk kabel 1 m LC FTTH Gul

124 kr.

124 kr.

Funktioner
Kabellængde	1 m
Fiberoptisk type	G.652D
Stik 1	LC
Stik 2	Ingen
Stik 1 køn	Hanstik
Stik 2 køn	Ingen
Forbindelsespoleringstype	UPC
Kabeltype	FTTH
Produktfarve	Gul
Fibertilstandsstruktur	Enkeltilstand
Indsætningstab	0,15 dB
Returdæmpning	60 dB
Materiale for kapper	Polyvinylchlorid (PVC)
Plug and play	Ja

Driftsbetingelser
Driftstemperatur (T-T)	-40 - 85 °C

Vægt & størrelser
Kabeldiameter	0,9 mm
Vægt	10 g

Emballeringsdata
Pakkebredde	200 mm
Pakkedybde	200 mm
Pakkehøjde	300 mm
Pakkevægt	500 g
Pakketype	Taske

Emballage indhold
Antal pr. pakke	1 stk
Testprotokol inkluderet	Ja

Logistik data
Toldproduktkode (TARIC)	85447000
Oprindelsesland	Kina
