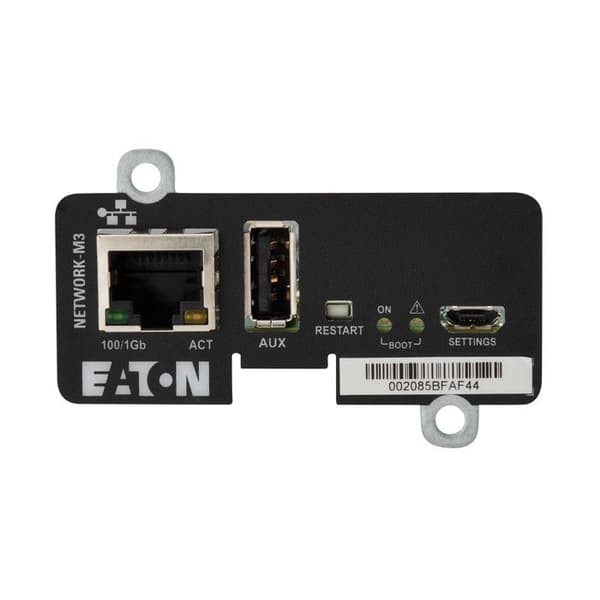

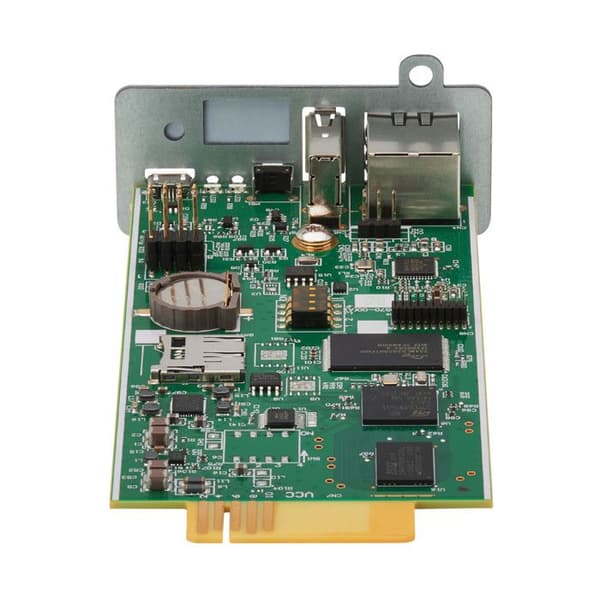

Name: Eaton NETWORK-M3 Netværkskort ASI
SKU: 105872_eat1715108341212_6_cdonse
Price: 2292 DKK
Availability: InStock

condition

connectivity_technology

weight

Porte & Grænseflader

The technology that enables connectivity of the device, e.g. wired or wireless.

Forbindelsesteknologi

Descriptions of the products host interface

Værtsgrænseflade

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA

Grænseflade

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device.  Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

Ethernet LAN-porte (RJ-45)

The total number of available Universal Serial Bus (USB) connection interfaces on the device.

Antal USB-porte

Netværk

The maximum speed with which data can be transmitted from one device to another.

Maksimal dataoverførselshastighed

An Ethernet LAN (Local Area Network) interface is present

Ethernet LAN

The maximum data transfer rate supported by the network port, expressed in gigabits per second (e.g., 10 Gigabit Ethernet).

Ethernet-grænsefladetype

The different speed levels of the Ethernet LAN connection.

Ethernet LAN-datahastigheder

Network protocols tested as compatible with this product

Understøttede netværksprotokoller

Design

Intern

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Bæredygtighed

Indicates whether the product complies with established environmental and sustainability standards.

Overholdelse af bæredygtighed

Vægt & størrelser

Weight of the product without packaging (net weight). If possible

Vægt

Emballage indhold

Specifies the types and quantities of connection cables provided with the product (e.g., 3.5 mm to 3.5 mm or SATA).

Kabler inkluderet

Indicates whether a printed user manual is included in the package.

Brugervejledning

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Eaton NETWORK-M3 Netværkskort ASI

2.292 kr.

2.292 kr.

Produktbeskrivelse

Eaton NETWORK-M3 Netværkskort ASI

2.292 kr.

2.292 kr.

Porte & Grænseflader
Forbindelsesteknologi	Ledningsført
Værtsgrænseflade	MiniSlot
Grænseflade	Ethernet
Ethernet LAN-porte (RJ-45)	1
Antal USB-porte	2

Netværk
Maksimal dataoverførselshastighed	1000 Mbit/s
Ethernet LAN	Ja
Ethernet-grænsefladetype	Gigabit Ethernet
Ethernet LAN-datahastigheder	10,100,1000 Mbit/s
Understøttede netværksprotokoller	HTTPS1.1, MQTTS, TLS1.2, SNMPv1, SNMP v3, NTP, SMTPS, BOOTP/DHCP, CLI, SSH, ARP and Syslog

Design
Intern	Ja

Driftsbetingelser
Driftstemperatur (T-T)	0 - 40 °C

Bæredygtighed
Overholdelse af bæredygtighed	Ja

Vægt & størrelser
Vægt	1,04 kg

Emballage indhold
Kabler inkluderet	USB
Brugervejledning	Ja

Tekniske detaljer
Compliance-certifikater	CE, RoHS
