Processorproducent

AMD

Processor sokkel

Sokkel AM5

Kompatibel processor serie

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Understøttede procesorsokler

Sokkel AM5

Understøttede hukommelsestyper

DDR5-SDRAM

Antal hukommelsesstik

4

Hukommelses slots type

DIMM

Hukommelseskanaler

To-kanals

ECC-kompatibilitet

ECC & ikke-ECC

Understøttet hukommelsesur hastighed (maks.)

8000 MHz

Maksimal intern hukommelse

256 GB

Ikke-bufferet hukommelse

Ja

Understøttet datalagringsdrev typer

HDD & SSD

Understøttede lagerdrev brugerflader

M.2, SATA III

Antal understøttede HHD'er

2

Antal understøttede lagerdiske

6

Understøtter RAID

Ja

RAID-niveauer

0, 1, 5, 10

Understøttelse af parallel behandlingsteknologi

Ikke understøttet

On-board grafikkort

Ingen

Maksimal opløsning

7680 x 4320 pixel

USB 2.0-stik

2

USB 3.2 Gen 1 (3.1 Gen 1) stik

1

USB 3.2 Gen 2 (3.1 Gen 2) -stik

1

Antal SATA III-stik

2

Lydstik på frontpanel

Ja

Stik til frontpanel

Ja

ATX strømstrik (24 stikben)

Ja

CPU-ventilatorstik

Ja

Antal stik til CPU-blæser

2

Antal kabinetventilatorstik

4

EPS strømstik (8-pin)

Ja

Antal EPS-strømstik (8-pin)

2

Thunderbolt-headere

1

Antal vandpumpetilslutninger

1

Antal headers til temperatursensor

1

Header med RGB-LED-ben

Ja

Antal RGB LED-pinheaders

3

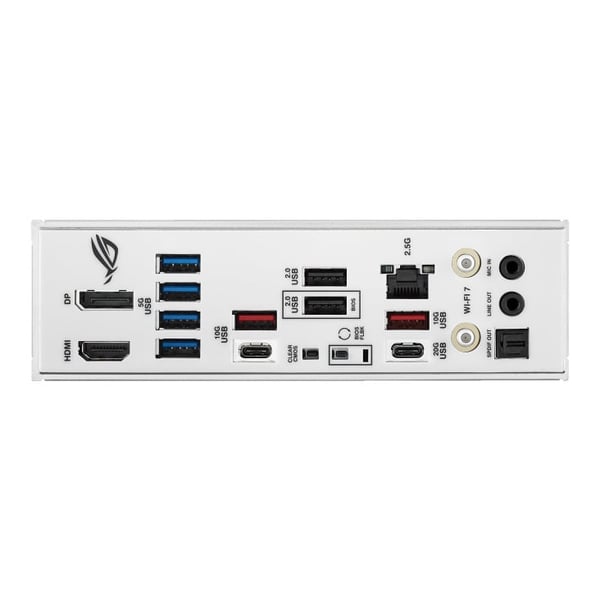

Antal USB 2.0-porte

2

Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte

4

Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte

2

Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte

1

Antal USB 3.2 Gen 2x2 type-C-porte

1

Ethernet LAN-porte (RJ-45)

1

Antal HDMI-porte

1

HDMI-version

2.1

Antal DisplayPorts

1

DisplayPort-version

1.4

Udgange til hovedtelefoner

1

Line-in

Ja

S/PDIF-udgang

Ja

Digital akustisk og optisk udgang

1

WiFi-AP antenne stik

2

Ethernet LAN

Ja

Ethernet-grænsefladetype

2.5 Gigabit Ethernet

Wi-Fi

Ja

Bedste Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi-standarder

Wi-Fi 7 (802.11be)

Bluetooth

Ja

Bluetooth-version

5.4

Bundkort chipsæt

AMD B850

Lydchip

Realtek ALC4080

Lyd-output kanaler

7.1 kanaler

Produktfarve

Hvid

Komponent til

PC

Motherboard form faktor

ATX

Bundkort chipset familie

AMD

Strømkilde type

ATX

Understøttede Windows-operativsystemer

Windows 11

PCI Express x16 (Gen 4.x) slots

1

Antal M.2 (M) slots

4

1. M.2 største nøglestørrelse

2280

1. M.2 højeste PCI Express-generation

5.0

2. M.2 største nøglestørrelse

22110

2. M.2 højeste PCI Express-generation

4.0

3. M.2 største nøglestørrelse

2280

3. M.2 højeste PCI Express-generation

4.0

4. M.2 største nøglestørrelse

2280

4. M.2 højeste PCI Express-generation

4.0

BIOS-type

UEFI AMI

BIOS-hukommelsesstørrelse

256 Mbit

Clear CMOS knap

Ja

Bredde

305 mm

Dybde

244 mm

Lydudgang

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Specielle funktioner

Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen™ 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*

AMD B850 Chipset
M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**
M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.

AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10

Andre funktioner

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO^™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Grafikudgang

1 x DisplayPort*
1 x HDMI™ port**
- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
* Supports max. 8K@30Hz as specified in DisplayPort 1.4
** Supports 4K@60Hz as specified in HDMI 2.1
*** VGA resolution support depends on processors' or graphic cards' resolution.
