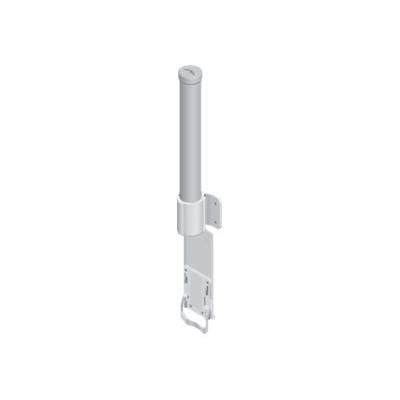

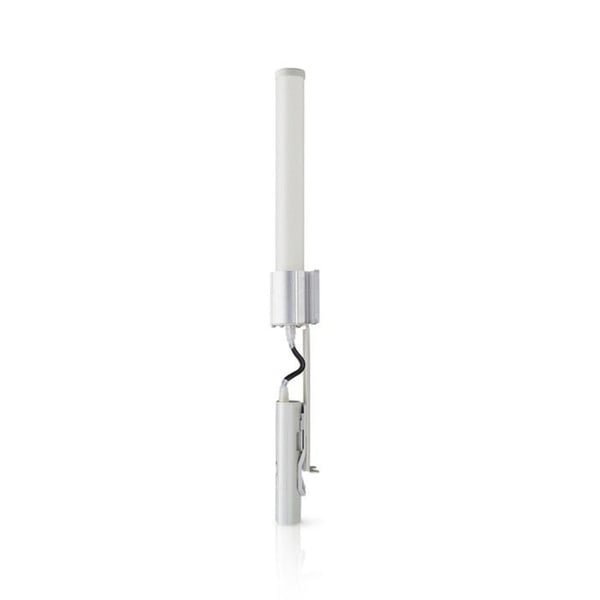

Name: Antenne - Ubiquiti Networks - AMO-5G10 - Forstærkning 10 dBi - 5 GHz - Sektor
SKU: 311575_auc0810354020988_6_cdonse
Price: 1220 DKK
Availability: InStock

condition

Ubiquiti Networks AMO-5G10 antenne med en gevinst på 10 dBi og en frekvensbånd på 5 GHz. Let (680g) er den perfekt til trådløse netværk og tilbyder fremragende ydeevne i sektor.<br>

color

weight

Præstation

A small section of the spectrum of radio communication frequencies

Frekvensbånd

The angular width of the signal beam in the horizontal plane when operating at a frequency of 5 GHz, measured in degrees.

Vandret strålebredde (5 GHz)

The angular extent of the signal pattern in the vertical plane when operating on the 5 GHz frequency band, measured in degrees.

Lodret strålebredde (5 GHz)

Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction

Niveau for antennestyrke (maks.)

Funktioner

Antenne type

The orientation of the electric field relative to the Earth's surface (e.g. Horizontal or Circular polarization).

Polarisering

The ratio of the voltage standing wave pattern's maximum to minimum amplitude, indicating the efficiency of power transmission and the degree of impedance matching between the device and the transmission line.

Stående spændingsbølgeforhold (VSWR)

Produktfarve

What size the mounting head of the product is, to couple it with a camera.

Montering

Formål

Godkendelser

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Certificering

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible

Vægt

Emballage indhold

The number of individual units contained within a single sales package, measured in pc(s).

Antal pr. pakke

Logistik data

The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.

Antenne - Ubiquiti Networks - AMO-5G10 - Forstærkning 10 dBi - 5 GHz - Sektor

1.220 kr.

1.220 kr.

Produktbeskrivelse

Antenne - Ubiquiti Networks - AMO-5G10 - Forstærkning 10 dBi - 5 GHz - Sektor

1.220 kr.

1.220 kr.

Præstation
Frekvensbånd	5 GHz
Vandret strålebredde (5 GHz)	12°
Lodret strålebredde (5 GHz)	4°
Niveau for antennestyrke (maks.)	10 dBi

Funktioner
Antenne type	Sektorantenne
Polarisering	Dobbelt polarisering
Stående spændingsbølgeforhold (VSWR)	1,6:1
Produktfarve	Hvid
Montering	Væg
Formål	Udendørs

Godkendelser
Certificering	EN 302 326 DN2

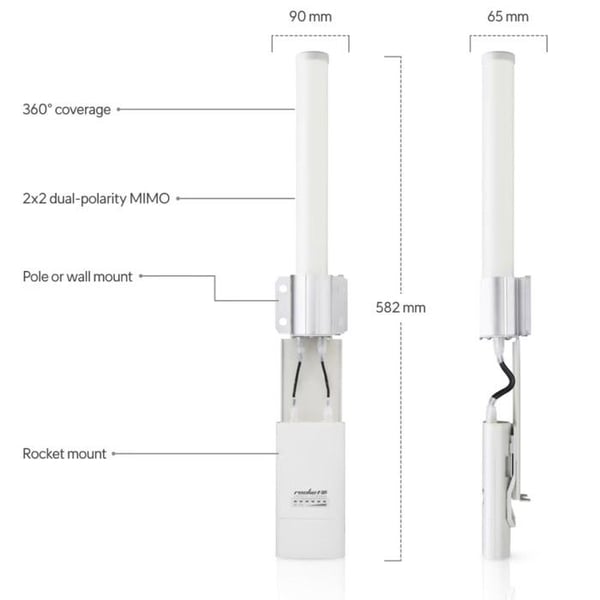

Vægt & størrelser
Bredde	582 mm
Dybde	90 mm
Højde	65 mm
Vægt	680 g

Emballage indhold
Antal pr. pakke	1 stk

Logistik data
Harmoniseret systemkode (HS)	85177100
