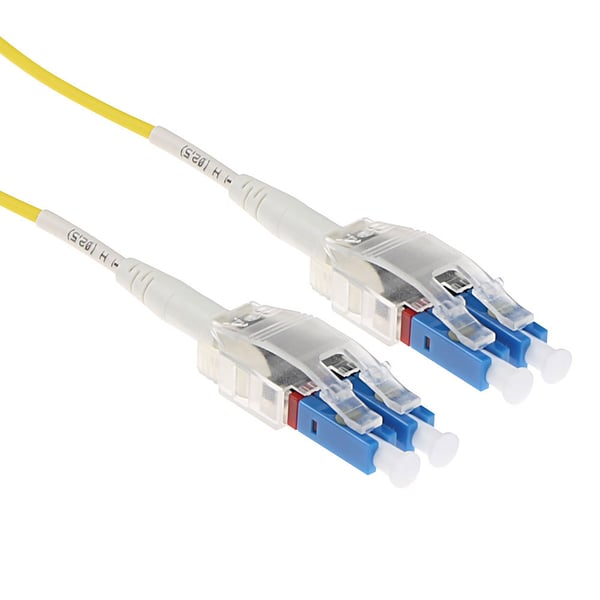

Name: ACT RL8251 InfiniBand og fiberoptisk kabel 1,5 m LC Gul
SKU: 8716065454673
Price: 351 DKK
Availability: InStock

ACT RL8251. Kabellængde: 1,5 m, Fiberoptisk type: OS2, Stik 1: LC, Stik 2: LC, Kernediameter: 9 µm<br>

color

Funktioner

Kabellængde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Stik 1

This is the second connector in the device.

Stik 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Stik 1 køn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Stik 2 køn

Produktfarve

Kernediameter

Beklædning diameter

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fibertilstandsstruktur

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

Indsætningstab

The ratio of power reflected back toward the source to the power delivered into the unit, typically measured in decibels (dB).

Returdæmpning

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Materiale for kapper

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vægt & størrelser

The distance from one side of the cable to the other

Kabeldiameter

Emballage indhold

The number of individual units contained within a single sales package, measured in pc(s).

Antal pr. pakke

Logistik data

The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.

ACT RL8251 InfiniBand og fiberoptisk kabel 1,5 m LC Gul

351 kr.

351 kr.

Produktbeskrivelse

ACT RL8251 InfiniBand og fiberoptisk kabel 1,5 m LC Gul

351 kr.

351 kr.

Funktioner
Kabellængde	1,5 m
Fiberoptisk type	OS2
Stik 1	LC
Stik 2	LC
Stik 1 køn	Hanstik
Stik 2 køn	Hanstik
Produktfarve	Gul
Kernediameter	9 µm
Beklædning diameter	125 µm
Fibertilstandsstruktur	Enkeltilstand
Indsætningstab	0,1 dB
Returdæmpning	55 dB
Materiale for kapper	Lav røg ingen halogen (LSZH)

Driftsbetingelser
Driftstemperatur (T-T)	-20 - 70 °C

Vægt & størrelser
Kabeldiameter	1,6 mm

Emballage indhold
Antal pr. pakke	1 stk

Logistik data
Harmoniseret systemkode (HS)	85447000

ACT RL8251 InfiniBand og fiberoptisk kabel 1,5 m LC Gul

351 kr.

351 kr.

Produktbeskrivelse

Specifikationer

ACT RL8251 InfiniBand og fiberoptisk kabel 1,5 m LC Gul

351 kr.

351 kr.
