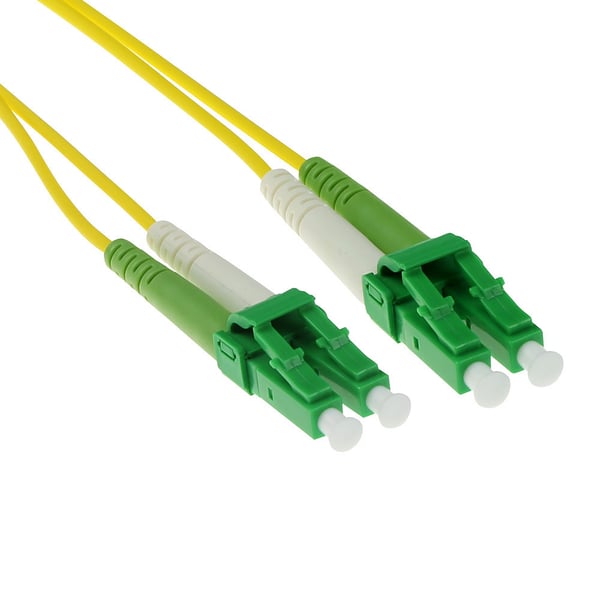

Name: ACT RL2651 InfiniBand og fiberoptisk kabel 1,5 m LC Gul
SKU: 8716065002294
Price: 371 DKK
Availability: InStock

ACT RL2651. Kabellængde: 1,5 m, Fiberoptisk type: OS2, Stik 1: LC, Stik 2: LC, Kernediameter: 9 µm, Fuld duplex<br>

color

Funktioner

Kabellængde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Stik 1

This is the second connector in the device.

Stik 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Stik 1 køn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Stik 2 køn

The specific geometry and finish of the fiber optic connector end-face to minimize signal loss, such as APC or UPC.

Forbindelsespoleringstype

Produktfarve

A full-duplex system allows communication in both directions

Fuld duplex

Kernediameter

Beklædning diameter

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fibertilstandsstruktur

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

Indsætningstab

The ratio of power reflected back toward the source to the power delivered into the unit, typically measured in decibels (dB).

Returdæmpning

The maximum amount of pressure the product can withstand before permanent deformation or failure occurs.

Trykstyrke

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Materiale for kapper

The substance used to manufacture the housing or contacts (e.g. Aluminium, Brass, or ABS).

Tilslutningsmateriale

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vægt & størrelser

The distance from one side of the cable to the other

Kabeldiameter

Logistik data

The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.

ACT RL2651 InfiniBand og fiberoptisk kabel 1,5 m LC Gul

371 kr.

371 kr.

Produktbeskrivelse

ACT RL2651 InfiniBand og fiberoptisk kabel 1,5 m LC Gul

371 kr.

371 kr.

Funktioner
Kabellængde	1,5 m
Fiberoptisk type	OS2
Stik 1	LC
Stik 2	LC
Stik 1 køn	Hanstik
Stik 2 køn	Hanstik
Forbindelsespoleringstype	APC
Produktfarve	Gul
Fuld duplex	Ja
Kernediameter	9 µm
Beklædning diameter	125 µm
Fibertilstandsstruktur	Enkeltilstand
Indsætningstab	0,2 dB
Returdæmpning	60 dB
Trykstyrke	90
Materiale for kapper	Lav røg ingen halogen (LSZH)
Tilslutningsmateriale	Keramisk

Driftsbetingelser
Driftstemperatur (T-T)	-20 - 60 °C

Vægt & størrelser
Kabeldiameter	2 mm

Logistik data
Harmoniseret systemkode (HS)	85447000
