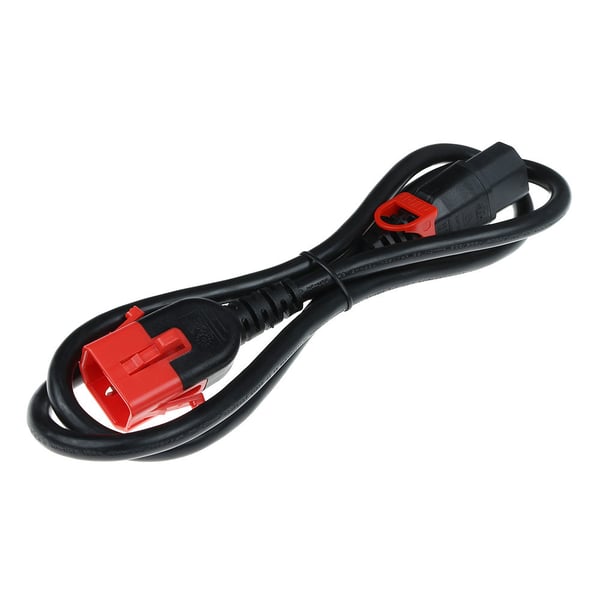

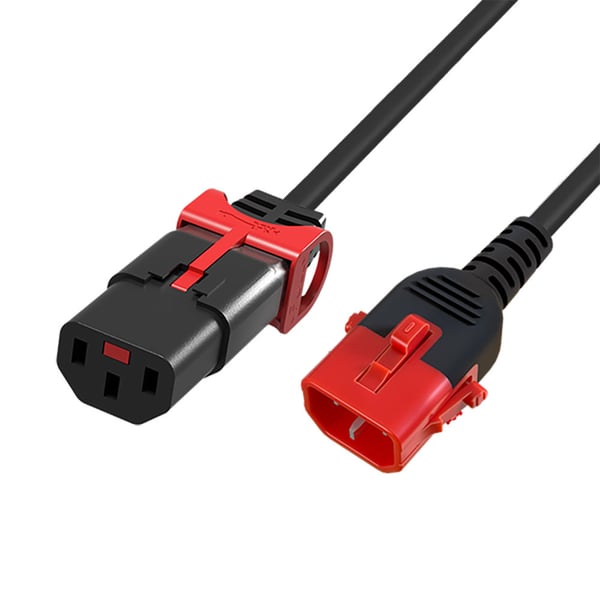

Name: ACT AK5505 el-ledning Sort 3 m C13 forbinder C14 forbinder
SKU: 5056313247132
Price: 410 DKK
Availability: InStock

ACT AK5505. Kabellængde: 3 m, Stik 1: C13 forbinder, Stik 2: C14 forbinder. Indgangsspænding: 250 V, Indgangsstrøm: 10 A<br>

color

Funktioner

Produktfarve

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Stik 1 køn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Stik 2 køn

Kabellængde

This is the first connector in the device.

Stik 1

This is the second connector in the device.

Stik 2

Stik 1 standard

Stik 2 standard

Stik 1 formfaktor

Stik 2 formfaktor

Stik 1 låsbar

Stik 2 låsbar

Velegnet til brug i land/placering

Materiale for kapper

Ledningsmateriale

AWG-ledningsstørrelse

Indicates whether this product supports is "plug and play". Plug and play is  hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Plug and play

Antal kabelkerner

Ledningsstørrelse

Strømstyring

The voltage (V) which is required to power the product.

Indgangsspænding

Indgangsstrøm

Strøm (maks.)

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

ACT AK5505 el-ledning Sort 3 m C13 forbinder C14 forbinder

410 kr.

410 kr.

Produktbeskrivelse

ACT AK5505 el-ledning Sort 3 m C13 forbinder C14 forbinder

410 kr.

410 kr.

Funktioner
Produktfarve	Sort
Stik 1 køn	Hunstik
Stik 2 køn	Hanstik
Kabellængde	3 m
Stik 1	C13 forbinder
Stik 2	C14 forbinder
Stik 1 standard	IEC 60320
Stik 2 standard	IEC 60320
Stik 1 formfaktor	Lige
Stik 2 formfaktor	Lige
Stik 1 låsbar	Ja
Stik 2 låsbar	Ja
Velegnet til brug i land/placering	Australien, Canada, Europa, Japan, Nordamerika
Materiale for kapper	Nylon/polyvinylchlorid (PVC)
Ledningsmateriale	Kobber
AWG-ledningsstørrelse	17
Plug and play	Ja
Antal kabelkerner	3
Ledningsstørrelse	1 mm²

Strømstyring
Indgangsspænding	250 V
Indgangsstrøm	10 A
Strøm (maks.)	15 A

Driftsbetingelser
Driftstemperatur (T-T)	-20 - 105 °C

Vægt & størrelser
Diameter	8 mm

Emballeringsdata
Antal pr. pakke	1 stk
