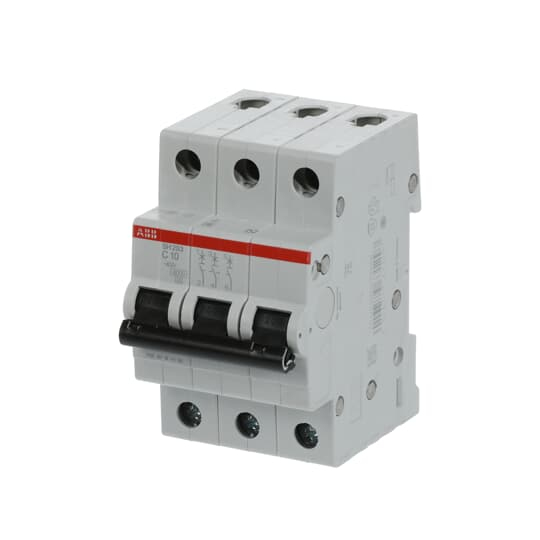

Name: ABB 2CDS213001R0104 kredsløbsafbryder Miniature strømafbryder 3
SKU: 4016779631297
Price: 177 DKK
Availability: InStock

ABB 2CDS213001R0104. Nominel strøm: 10 A, Indgangsspænding: 440 V AC, Indgangsfrekvens: 50/60 Hz. Strømbryder type: Miniature strømafbryder, Smeltekurvetype: Type C, Kode for international beskyttelse (IP): IP20. Bredde: 52,5 mm, Dybde: 69 mm, Højde: 85 mm<br>

color

weight

Strømstyring

The voltage (V) which is required to power the product.

Indgangsspænding

The frequency (Hz) which is required to power the product.

Indgangsfrekvens

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Nominel strøm

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Nominel spænding

The amount of electrical energy dissipated as heat during operation, measured in W.

Totalt strømtab

The maximum electric field that the insulating material can withstand before electrical breakdown occurs, typically measured in volts per unit of thickness.

Dielektrisk styrke

Funktioner

The specific design and functional category of the protection device, such as a Miniature circuit breaker or a Residual-current device.

Strømbryder type

The characteristic curve that defines the current level at which the device will trip, such as Type B or Type C.

Smeltekurvetype

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Antal poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Kode for international beskyttelse (IP)

A fuse is a safety device consisting of a strip of wire that melts and breaks an electric circuit if the current exceeds a safe level.

Sikringstype

The level of protection provided against electric shock, categorized by the design of the insulation and grounding (e.g., Class II).

Beskyttelsesklasse

The colour e.g. red, blue, green, black, white.

Produktfarve

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Certificering

Driftsbetingelser

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Opbevaringstemperatur (T-T)

Vægt & størrelser

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Height of the product, expressed in centimeters

Højde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

ABB 2CDS213001R0104 kredsløbsafbryder Miniature strømafbryder 3

177 kr.

177 kr.

Produktbeskrivelse

ABB 2CDS213001R0104 kredsløbsafbryder Miniature strømafbryder 3

177 kr.

177 kr.

Strømstyring
Indgangsspænding	440 V AC
Indgangsfrekvens	50/60 Hz
Nominel strøm	10 A
Nominel spænding	1400 V
Totalt strømtab	6,3 W
Dielektrisk styrke	2000 V

Funktioner
Strømbryder type	Miniature strømafbryder
Smeltekurvetype	Type C
Antal poler	3
Kode for international beskyttelse (IP)	IP20
Sikringstype	Termisk
Beskyttelsesklasse	III
Produktfarve	Grå
Certificering	IEC/EN 60898-1

Driftsbetingelser
Driftstemperatur (T-T)	-25 - 55 °C
Opbevaringstemperatur (T-T)	-40 - 70 °C

Vægt & størrelser
Bredde	52,5 mm
Dybde	69 mm
Højde	85 mm
Vægt	375 g
