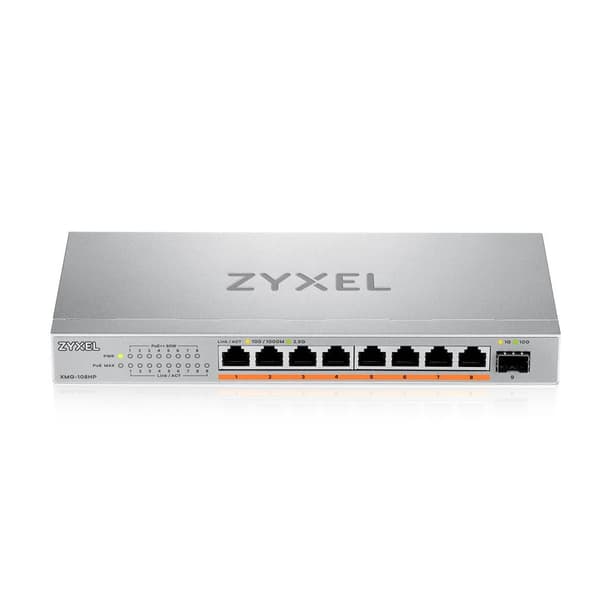

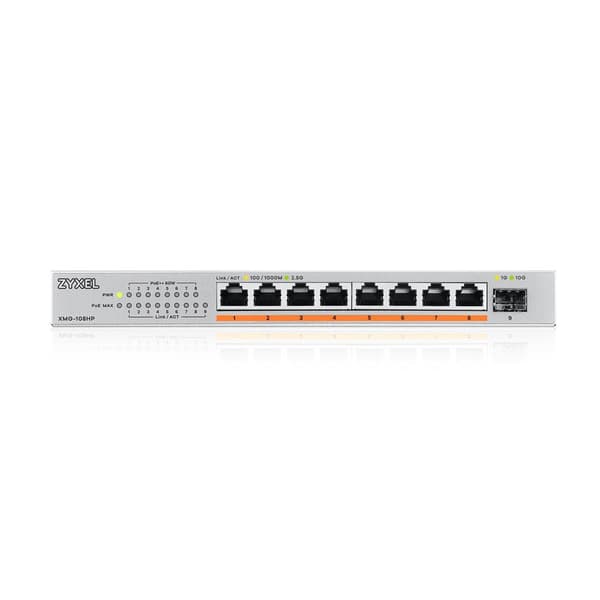

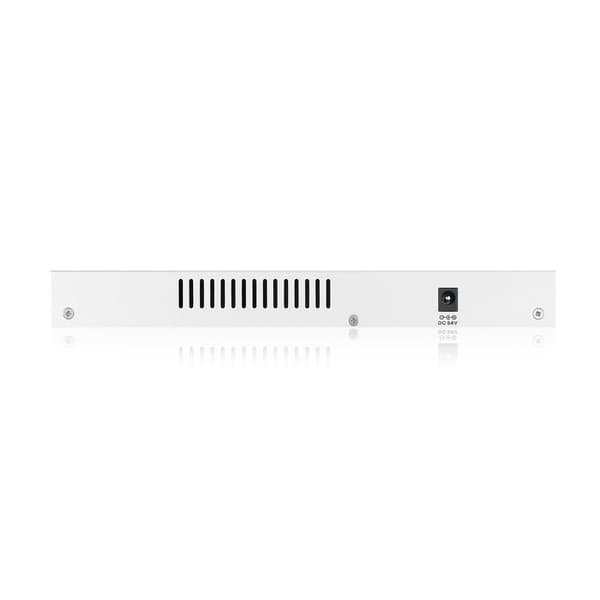

Zyxel XMG-108HP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)

ZyXEL

Zyxel XMG-108HP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)

Name: Zyxel XMG-108HP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
Brand: ZyXEL
SKU: ce_102398
Price: 1525 DKK
Availability: InStock

1.525 kr.

Få tilbage

Tirs., 8 apr. - tors., 10 apr.

Sikker betaling

14 dages åbent køb

Sælges og leveres af

Erksononline3

DesignLED indicators:Link,PoE,PowerPowerAC input voltage:100 - 240 VAC input frequency:50/60 HzPower source:DCPower consumption (max):120 WPower supply included:YesOperational conditionsOperating relative humidity (H-H):10 - 95%Storage temperature (T-T):-40 - 70 °COperating temperature (T-T):-20 - 40 °CHeat dissipation:91.1 BTU/hStorage relative humidity (H-H):5 - 95%Management featuresQuality of Service (QoS) support:YesSwitch type:UnmanagedWeight & dimensionsWeight:715 gDepth:105 mmWidth:240 mmHeight:27 mmNetwork10G support:YesPerformanceMean time between failures (MTBF):858634 hPackaging dataQuick start guide:YesPorts & interfacesBasic switching RJ-45 Ethernet ports quantity:8SFP+ module slots quantity:1Basic switching RJ-45 Ethernet ports type:2.5G Ethernet (100/1000/2500)Data transmissionJumbo frames:12000Forwarding rate:44.6 MppsMAC address table:4000 entriesPacket buffer memory:1 MBSwitching capacity:60 Gbit/sJumbo frames support:YesPower over Ethernet (PoE)Power over Ethernet 4PPoE (PoE++) ports quantity:8Power over Ethernet (PoE):YesTotal Power over Ethernet (PoE) budget:100 W

Varenr.

9cceb7aa-88a8-51b6-9b08-9448dc046cd3

Administrationsfunktioner
Switch-type	Ikke administreret
Servicekvalitet support (QoS)	Ja

Porte & Grænseflader
Basis omskiftning RJ-45 Ethernet porte, antal	8
Basis omskiftning RJ-45 Ethernet porttype	2.5G Ethernet (100/1000/2500)
Antal SFP + modulslots	1

Netværk
10G understøttelse	Ja

Dataoverførsel
Switch kapacitet	60 Gbit/sek.
Hastighed for videresendelse	44,6 Mpps
MAC adresselabel	4000 entries
Jumbo Frames support	Ja
Jumbo rammer	12000
Pakke bufferlager	1 MB

Design
LED-indikatorer	PoE, Strøm, Link

Præstation
Gennemsnitstid mellem fejl (MTBF)	858634 t

Strømstyring
Strømkilde	DC
Strømforsyning inkluderet	Ja
Vekselstrømsindgangsspænding	100 - 240 V
Vekselstrømsindgangsfrekvens	50/60 Hz
Strømforbrug (maks.)	120 W

Power over Ethernet (PoE)
Strøm over Ethernet (PoE)	Ja
Antal Power over Ethernet 4PPoE-porte (PoE++)	8
Total Power over Ethernet (PoE)	100 W

Driftsbetingelser
Driftstemperatur (T-T)	-20 - 40 °C
Opbevaringstemperatur (T-T)	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H)	10 - 95%
Relativ luftfugtighed ved opbevaring (H-H)	5 - 95%
Varmeafgivelse	91,1 BUT/t

Vægt & størrelser
Bredde	240 mm
Dybde	105 mm
Højde	27 mm
Vægt	715 g

Emballage indhold
Hurtig start guide	Ja

Godkendelser
Certificering	CE, EAC, FCC, BSMI Class B
