• Interference protection - wipes out LTE 700/800 mobile signals
• Robust design - light alloy metal boom (18x18mm) square tube.
• Corrosion and weather proof dipole housing
• Semi assembled antenna

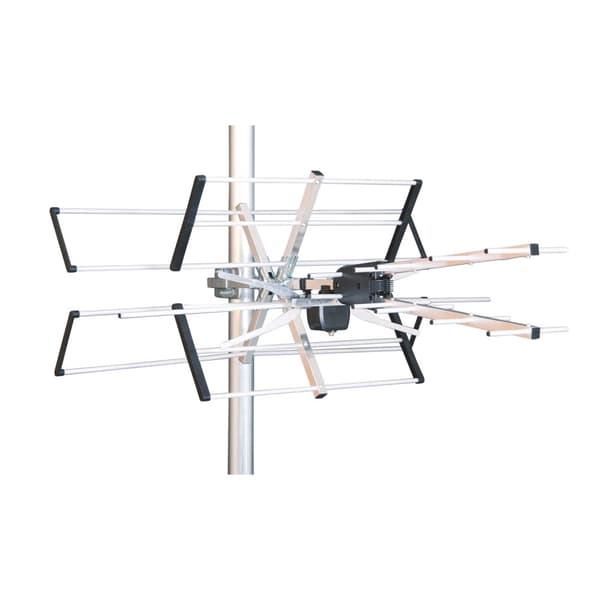

Designed for TV (470...694MHz)  and DAB/DAB+ (174...230MHz) reception.

Frequency
Band    B III / DAB / DAB+ / B IV/V UHF
Channels    5...12 / 21...48
Frequency range VHF    174...230 MHz
Frequency range UHF    470...694 MHz
LTE protection    700
Gain
Gain - VHF    4.2...6.1 dB
Gain - UHF    9.0...10.0 dB
Gain @ 174 MHz (Ch. 5)    4.2 dBi
Gain @ 230 MHz (Ch. 12)    6.1 dBi
Gain @ 474 MHz (Ch. 21)    9.6 dBi
Gain @ 602 MHz (Ch. 37)    10.0 dBi
Gain @ 694 MHz (Ch. 48)    9.0 dBi
Loss
Rejection @ 758 MHz (Ch. 56)    -17.4 dB
Rejection @ 788 MHz (Ch. 60)    -5.6 dB
Electrical
Front to back ratio - horisontal    15...20 dB
Impedance    75 Ω
Connectors
Connector Type    Saddle & Clamp (S&C)
Mechanical
Elements    22
Windload    88 N
Beamwidth horisontal    ± 42 °
Main material    Aluminium
Product Length    849 mm
Product Width    849 mm
