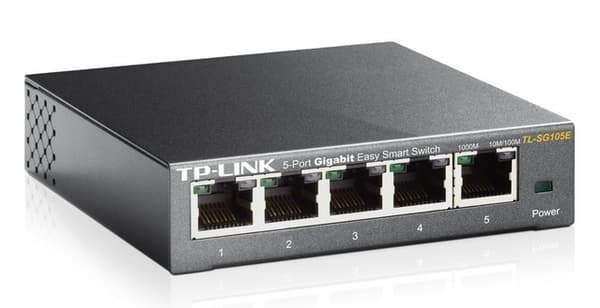

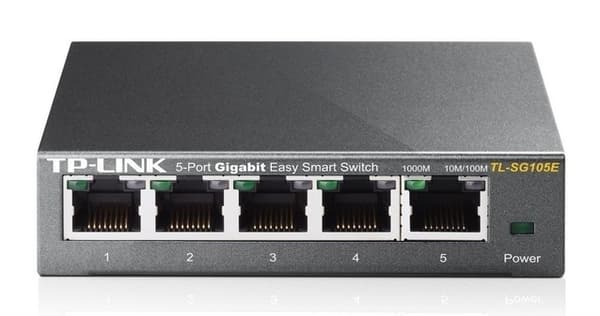

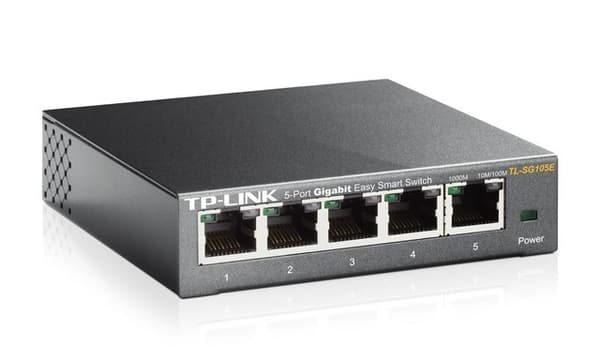

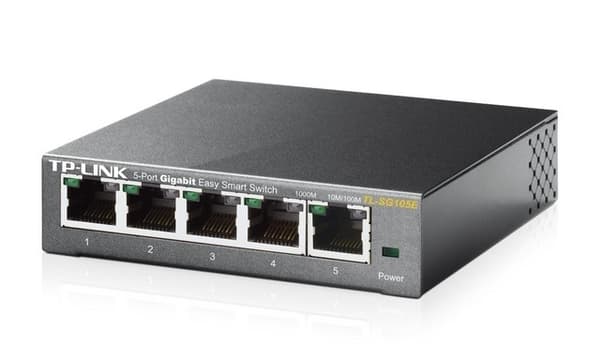

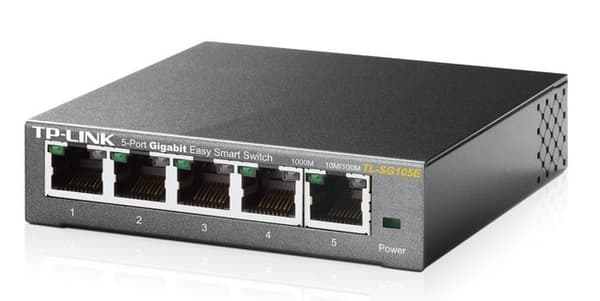

Switch TP-LINK 5x10Base-T / 100Base-TX / 1000Base-T (TL-SG105E)

TP-Link

Switch TP-LINK 5x10Base-T / 100Base-TX / 1000Base-T (TL-SG105E)

Name: Switch TP-LINK 5x10Base-T / 100Base-TX / 1000Base-T (TL-SG105E)
Brand: TP-Link
SKU: 117827305
Price: 281 DKK
Availability: InStock

281 kr.

På lager

Tirs., 22 apr. - man., 28 apr.

Sikker betaling

14 dages åbent køb

Sælges og leveres af

PrimeOnline

The TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 75% of power consumption, making it an eco-friendly solution for your business network.
- 5 10/100/1000Mbps RJ45 ports
- Provides network monitoring, traffic prioritization and VLAN features
- Innovative energy-efficient technology reduces power output by up to 75%
- Simple network set-up on top of plug-and-play connectivity
- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

5x10Base-T / 100Base-TX / 1000Base-T
IEEE 802.1p
IEEE 802.1Q
IEEE 802.3
IEEE 802.3ab
IEEE 802.3u
IEEE 802.3x
Switching capacity 10 Gbps
Forwarding rate 7.4 Mpps
Included Accessories Power Cord,Installation Guide,Resource CD,Rubber Feet
Unit Net Weight 0.36 kg

Varenr.

f4908d5d-f853-557d-9f4b-2270650af280

Administrationsfunktioner
Switch-type	Administreret
Switch lag	L2
Servicekvalitet support (QoS)	Ja
Webbaseret administration	Ja

Porte & Grænseflader
Basis omskiftning RJ-45 Ethernet porte, antal	5
Basis omskiftning RJ-45 Ethernet porttype	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (kobber) porte, antal	5

Netværk
Netværksstandarder	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G understøttelse	Ingen
Kobber ethernet kabelteknologi	1000BASE-T, 100BASE-TX, 10BASE-T
Understøttede kabeltyper	Cat3, Cat4, Cat5, Cat5e, Cat6
Port-spejlning	Ja
Link aggregering	Ja
Auto MDI/MDI-X	Ja
Auto-forhandling	Ja
VLAN understøttelse	Ja
Vituelle LAN funktioner	Port-based VLAN
Antal VLAN'er	32

Dataoverførsel
Switch kapacitet	10 Gbit/sek.
Hastighed for videresendelse	7,44 Mpps
MAC adresselabel	2000 entries
Opbevar-og-frem	Ja
Jumbo Frames support	Ja
Jumbo rammer	16000
Pakke bufferlager	1 MB

Sikkerhed
IGMP snooping	Ja

Design
Produktfarve	Sort
LED-indikatorer	Ja

Præstation
Kompatible operativsystemer	Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux

Strømstyring
Strømkilde	DC
Strømforsyning inkluderet	Ja
Indgangsstrøm	0.6 A
Indgangsspænding	5 V
Strømforbrug (maks.)	2,82 W

Power over Ethernet (PoE)
Strøm over Ethernet (PoE)	Ingen

Driftsbetingelser
Driftstemperatur (T-T)	0 - 40 °C
Opbevaringstemperatur (T-T)	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H)	10 - 90%
Relativ luftfugtighed ved opbevaring (H-H)	5 - 90%
Varmeafgivelse	9,07 BUT/t

Vægt & størrelser
Bredde	100 mm
Dybde	98 mm
Højde	25 mm

Emballage indhold
Kabler inkluderet	Vekselstrøm
Hurtig start guide	Ja
Brugervejledning	Ja
Rack monteringskit	Ja

Emballeringsdata
Pakketype	Kasse
Pakkebredde	125 mm
Pakkedybde	128 mm
Pakkehøjde	92 mm
Pakkevægt	450 g

Godkendelser
Certificering	FCC, CE, RoHS
