Name: LINDY - transmitter and receiver - video/audio/infrared/serial extender - HDBaseT
SKU: 232503
Price: 4027 DKK
Availability: InStock

4.027 kr.

Få tilbage

Ons., 7 maj - tirs., 13 maj

Sikker betaling

14 dages åbent køb

Sælges og leveres af

Gaiacom

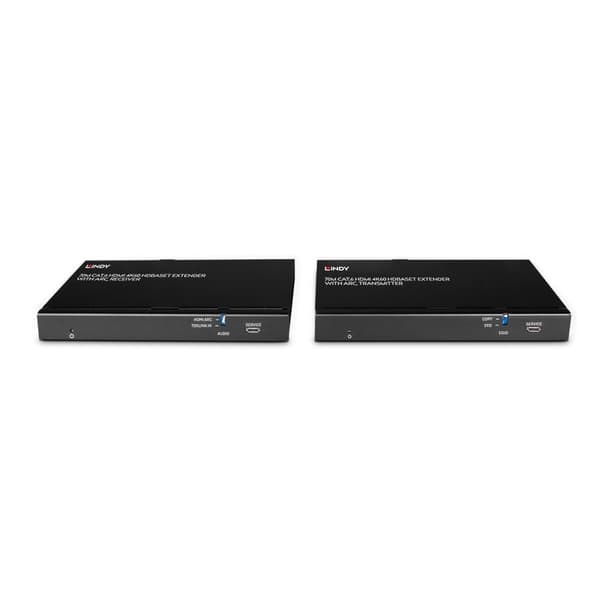

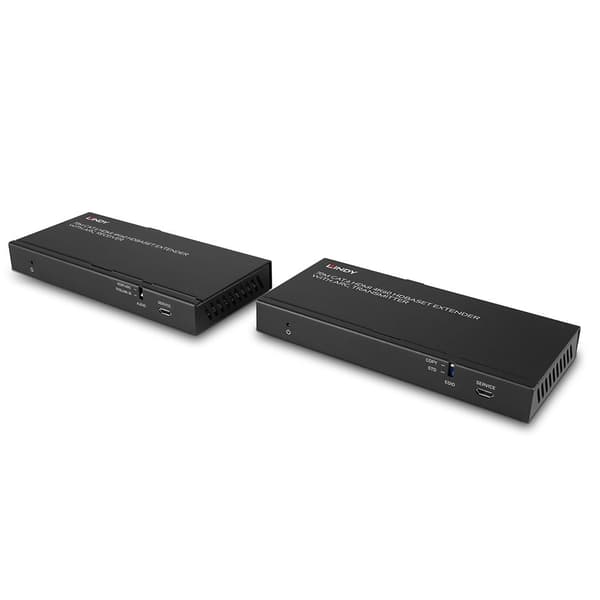

The LINDY IR receiver and emitter cable kit serves as a solution for extending video, audio, and infrared signals. Designed with a maximum supported video resolution of 3840 x 2160 at 60 Hz, this device is suitable for high-definition applications, enhancing your viewing experience. Its functionality includes HDMI input and output, as well as HDBaseT connectivity, ensuring compatibility with various devices. This external form-factor product features a maximum transfer distance of 70 m and supports a bandwidth of 18 Gbps, making it suitable for extensive setups. With additional features like EDID Pass-Through, Adaptive Rate Control, and bi-directional IR, this kit meets multiple connectivity needs while delivering reliable performance. The included mounting kit adds convenience for setup, while compliance with standards such as FCC, RoHS, and REACH underscores its commitment to quality and safety.

Varenr.

726888c1-70ad-5d9f-a062-bab964a3fda0

Funktioner
Type	AV sender & modtager
Maksimal opløsning	3840 x 2160 pixel
Understøttede kabeltyper	Cat6
Maksimal overførselsafstand	70 m
Chipsæt	VS010-A0
Maksimal opdateringshastighed	60 Hz
RS-232 gennemgang	Ja
Tovejs	Ja
Infrarødt (IR) frekvens rækkevidde	20 - 60 kHz
Båndbredde	18 Gbit/sek.
HDCP	Ja
Materiale	Metal
HDCP-version	2.2
Produktfarve	Sort
Certificering	California Proposition 65

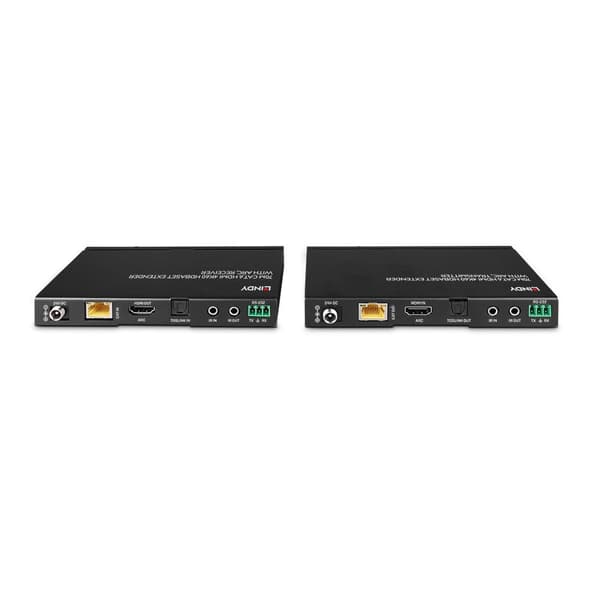

Porte & Grænseflader
Forbindelsesteknologi	Ledningsført
RJ-45 indgangs-porte	1
RJ-45 udgangs-porte	1
HSMI-indgang	1
Antal HDMI-udgange	1
HDMI-version	2.0
Digital lyd optisk inputtype	Toslink
Digital lyd optisk outputtype	Toslink
3,5 mm ind	Ja
3,5 mm ud	Ja
DC-in-stik	Ja

Strømstyring
Effektkrav	24VDC 1A

Driftsbetingelser
Driftstemperatur (T-T)	0 - 40 °C
Opbevaringstemperatur (T-T)	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H)	20 - 90%

Vægt & størrelser
Bredde	140 mm
Dybde	65 mm
Højde	18 mm
Vægt	760 g

Emballeringsdata
Antal pr. pakke	1 stk
Pakkebredde	245 mm
Pakkedybde	75 mm
Pakkehøjde	185 mm
Pakkevægt	940 g
Pakketype	Kasse

Emballage indhold
Brugervejledning	Ja

Tekniske detaljer
Specielle funktioner	PoC, ARC
Overholdelse af bæredygtighed	Ja
Garantiperiode	2 År
Compliance-certifikater	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
