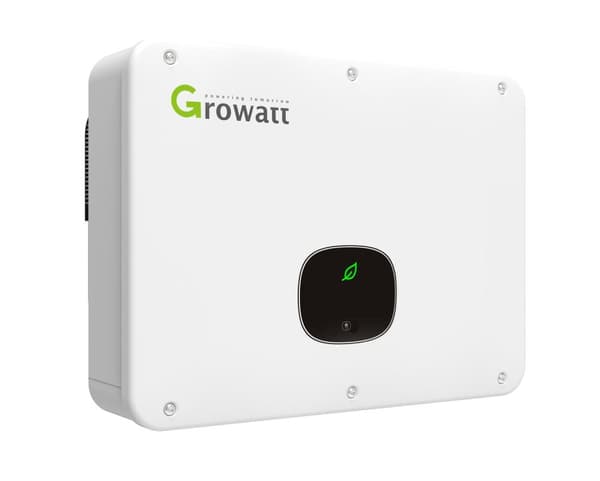

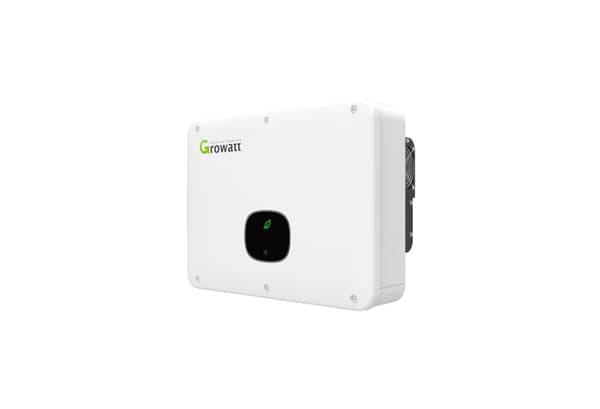

GROWATT* Premium three-phas Inverter 25 KwTL3-X
27.000 kr.
27.000 kr.
Få tilbage
Tors., 15 maj - ons., 21 maj
Sikker betaling
14 dages åbent køb
Sælges og leveres af
Highlands International AB
Produktbeskrivelse
This inverter is our second largest three-phase inverter that we stock and it has quickly become one of our most popular in the Premium segment. As I said, it is one of the larger inverters and is intended for the slightly larger installations and of course for those of you with high requirements. Even this inverter had reliability and simplicity as watchwords when it was produced, you notice it when you start using it. Simplicity: you manage everything with a Touch button on an OLED screen or with your smartphone via an App, it couldn't be simpler. Complete with a Growatt Shine WiFi-X Wi-Fi transmitter and monitor your solar system via your smartphone wherever you are. Managing and monitoring your facility will be a pleasure.
The design: We think that this inverter is the best-looking of all equivalents on the market, and this means that it fits in even with aesthetes, which means that you can be sure that you will get double the joy of your investment!
Without renouncing your or your family's safety, it is high-performing and has a maximum effect of 98.6%
GROWATT* Premium Three-Phase Inverter / Inverter 25 Kw TL3-X is equipped with string monitoring that informs you in a safe way about the performance of your solar system. If your facility is exposed to disturbances, it detects these immediately and can therefore quickly and precisely take measures. With alerts, the system reacts immediately to power losses for individual strings and you can fix, for example, defective or obscured solar panels by fallen branches or snow, broken connectors, cabling and much more before they have time to cause problems for your installation.
· AFCI function: detecting arc faults on the DC circuit in time is important, otherwise you can risk a disaster. Growatt inverters are equipped with a built-in AFCI function which, when activated correctly, shuts down the inverter.
· Type II SPD: Afraid of thunder and lightning? To further increase safety, Type II SPDs are installed on both the DC and AC side, which minimizes damage in the event of lightning strikes.
*GROWATT as a company: global leading company of smart energy solutions. Growatt is the largest in the world in Inverters, but in addition has an impressive portfolio of other energy products such as energy storage systems, EV chargers and smart energy management solutions. The company is dedicated to becoming the world's largest supplier of smart energy solutions. Growatt was founded in 2010 and has its manufacturing facility in Huizhou, China with 23 local offices around the world
Preferences
INPUT DATA
Max. Recommended PV output (for module STC); 37500W
Max. DC voltage; 1100V
Start the excitement; 250V
Nominal voltage; 600V
Mppt voltage range; 200V-1000V
Number of MPP trackers; 3
Number of PV strings per MPP tracker; 2
Max. Input current per MPP tracker; 26A
Max. Short circuit current per MPP tracker; 32A
OUTPUT DATA;
AC Nominal voltage; 25000W
Max. AC apparent voltage; 27700VA
Nominal AC voltage (range *); 220V/380V, 230V/400V (340-440V
AC frequency (range *); 50/60 Hz (45-55 Hz/55/65 Hz)
Max. output current; 40A
Adjustable power factor; 0.8 leading...0.8 lagging
THDI <3%
AC mains connection type; 3W+N+PE
EFFICIENCY;
Max. efficiency; 98.8%
European efficiency; 98.5%
Mppt efficiency; 99.9%
PROTECTIVE DEVICES
DC reverse polarity protection; Yes
DC switch; Yes
AC / DC surge protection; Type 2/ Type2
Insulation resistance monitoring; Yes
AC short circuit protection; yes
AC short circuit protection; Yes
Earth fault monitoring; Yes
Grid monitoring; Yes
Anti-Islanding Protection; Yes
Residual current monitoring device; Yes
AFCI protection; Yes
General preferences
Dimensions (w / h / d); 580 x 435 x 230 mm
Weight; 29.5 Kg
Working temperature; Between -25 to +60 degrees
Power consumption during the night; < 1W
Topology; Transformerless
Cooling; Smart air cooling
Degree of protection; IP65
Relative humidity; 0 - 100%
Works well height-wise; up to 4000m
DC connection; H4/MC4
AC connection; Cable gland+OT terminal
Display; OLED+LED/WIFI+App
Interface USB / RS485 / WiFi / GPRS / LAN / RF
Guarantee; 5/10 years: yes/ optional
Item number 101114
