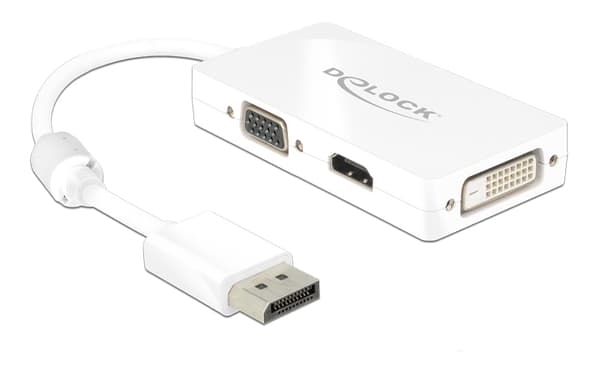

DeLOCK DisplayPort to VGA/HDMI/DVI passive adapter, DisplayPort 1.1, DVI-D Single Link, 0.2m, white

This Displayport adapter by Delock enables you to extend your system by one VGA, HDMI and DVI interface. Thus you can connect different devices like e.g. TV, beamer, PC monitor etc. Only one monitor can be used on the adapter, not several at the same time.

Specification
• Connector:
  1 x Displayport 20 pin male >
  1 x VGA 15 pin female
  1 x HDMI-A 19 pin female
  1 x DVI-D (Single Link) 24+1 female
• Chipset: PS8312, PTN3392
• Displayport 1.1a specification
• High Speed HDMI specification
• DVI-D (Single Link) 24+1 port with screw nuts (VGA not wired)
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Supports a resolution up to 1920 x 1200 / 1080p @ 60 Hz (depending on the
  system and the connected hardware)
• Power consumption: ca. 100 mW
• 1 x ferrite core
• Cable length ca. 16 cm without connector
• Colour: white
• OS independent, no driver installation necessary

System requirements
• A free Displayport DP++ female port

Package content
• Adapter Displayport to VGA / HDMI / DVI

Package
• Retail Box
