For sale is 1 brand new twin axle ATV trailer kit.
Contents of this kit include:
4 x Wheels, 22x11.00-8.
4 x Stub axles, 35x35x200mm solid stub.
1 x 360 Degree Swivel hitch.

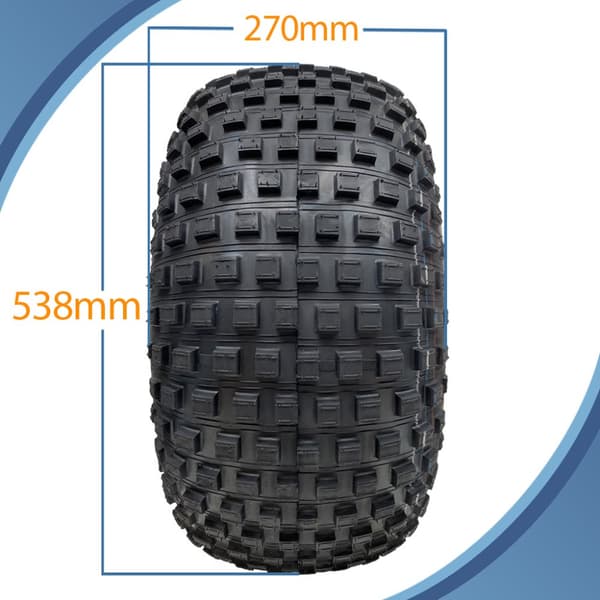

Tyre Specification:
Overall diameter: 538mm,
Max section width: 270mm,
Max load: 342lbs (155kg),
PSI: 5,
Ply Rating: 4ply,
Brand: Wanda,
Tyre Pattern: P323,
Max speed: 100km/h (62mph),
Load & Speed rating: 43J,
E-Marked Road Legal Number: E4-75R-0006182.
Rim Specification:
Solid steel welded heavy duty rims,
100mm PCD stud spacing,
60mm centre hole diameter,
13.5mm stud hole diameter.

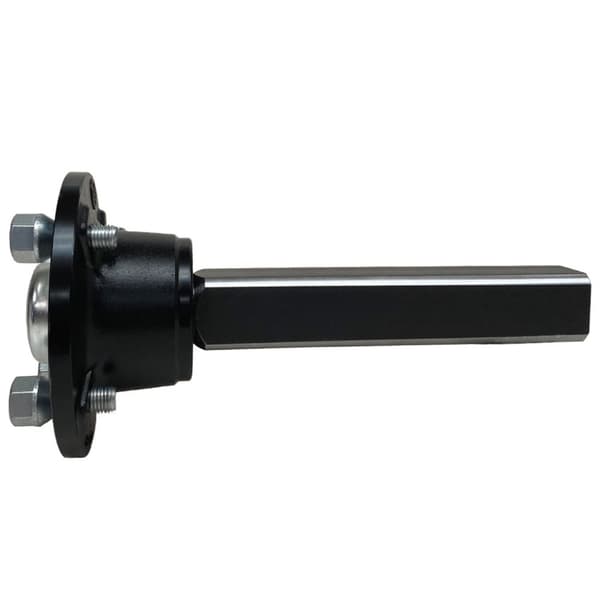

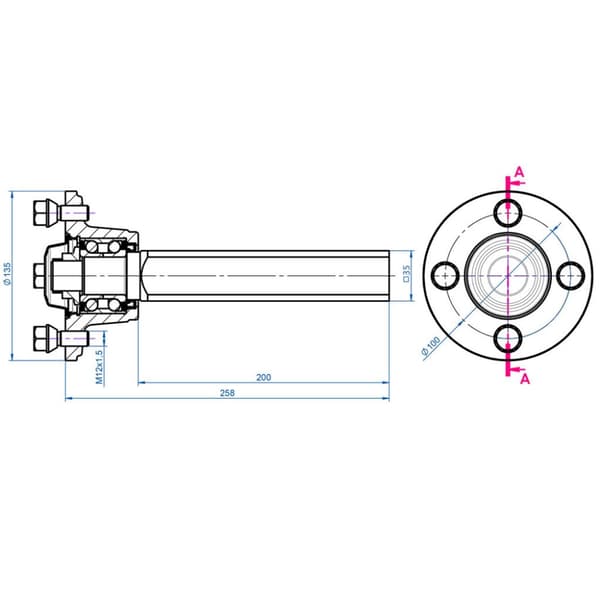

Item specifications: Stub axles.

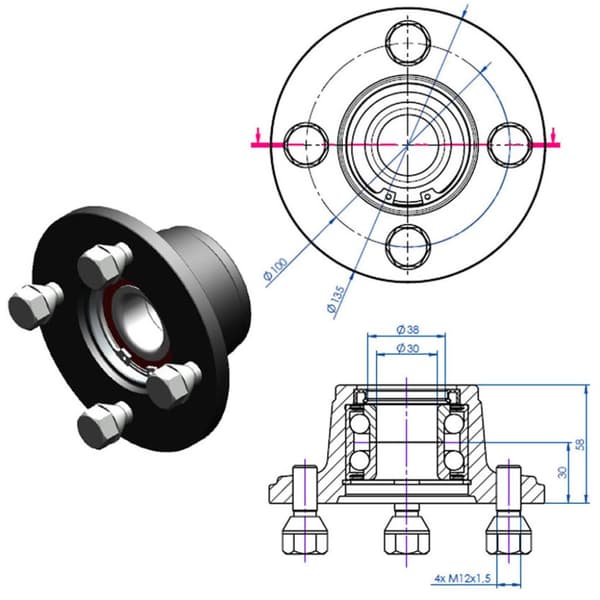

Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,
PCD is 100mm,
Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
The hubs are waterproof,
The shaft is 35x35mm x 200mm long, solid steel,
Manufactured by SPP (Steelpress, Poland).

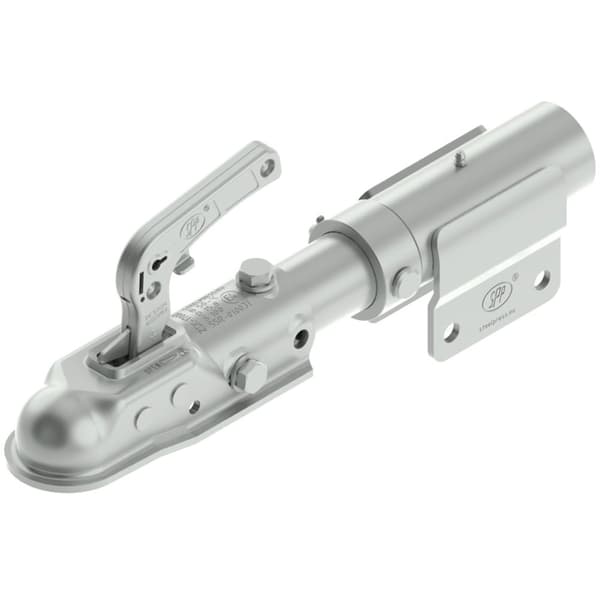

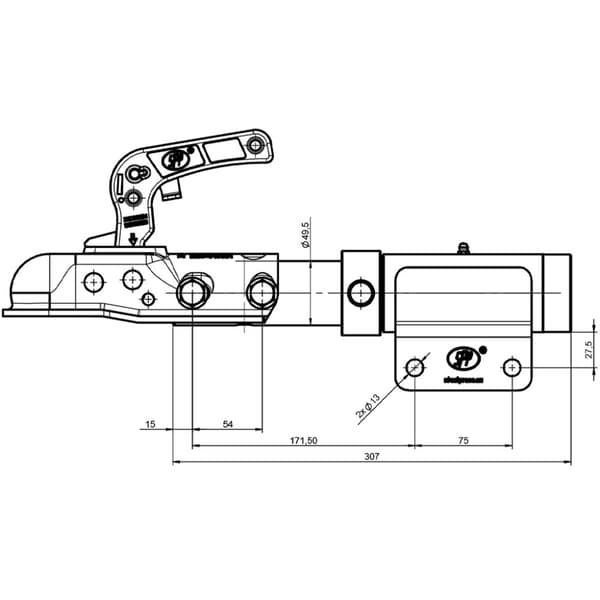

Item specifications: Hitch.
Heavy duty steel towing hitch with 360 Degree rotation.
This hitch sits over a 50X50mm box section fixed in place with 2 mounting holes (75mm apart).
The bolt holes are from an M12 bolt.
Overall length is 440mm.
Max load is 1700kg
This is for use on ATV trailers & equipment Off Road use only.
It is produced in the EU.
Safety feature for off road towing.
If your trailer turns over the swivel hitch rotates and your vehicle towing is not flipped with it.
Total Kit load capacity 620kgs.
